15kV 35kV ACSR Conductor ABC Aerial Bundled Cable Medium Voltage Overhead Cable

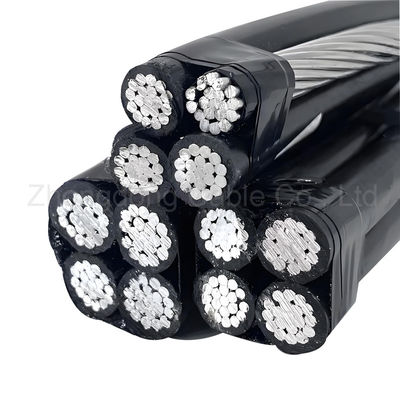

Large Image : 15kV 35kV ACSR Conductor ABC Aerial Bundled Cable Medium Voltage Overhead Cable

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CCC,ISO,TUV,CE
Model Number:	ABC

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum/ Steel Drum
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

15kV 35kV ACSR Conductor ABC Aerial Bundled Cable Medium Voltage Overhead Cable

Description

Application:	Overhead Distribution Line	Cores Nos:	1,2,3,4 More Multicore
Rated Voltage:	15/35kV	Installation Degree:	-20℃-90℃
Neutral Messengers:	AAC, AAAC Or ACSR	Insulation:	PE/PVC
Highlight:	ACSR Conductor Aerial Bundled Cable , Medium Voltage Aerial Bundled Cable , 35kV ACSR Conductor Overhead Cable

15kV 35kV ACSR Conductor ABC Aerial Bundled Cable Medium Voltage Overhead Cable

APPLICATION

1 phase:to supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 1000 volts or lower at a conductor temperature of 75℃ maximum.
2 phase: to supply power from the utility’s lines to the consumer’s weatherhead. For service at 1000 volts or less (phase to phase) at a conductor temperature of 75℃ maximum for polyethylene Insulation or 90℃ maximum for cross linked insulation.
3 phase: usually from a pole-mounted transformer, to the user’s service head where connection to the service entrance cable is made. To be used at voltages of 1000 volts or less phase to phase and at conductor temperatures not to exceed 75℃ for polyethylene insulated conductors or 90℃ for cross linked polyethylene (XLPE) insulated conductors.

CONSTRUCTION

All aluminium conductor, polyethylene or cross linked polyeth- ylene insulation, concentric strand AAC, ACSR, or 6201 alloy neu- tral messenger.

15kV 35kV ACSR Conductor ABC Aerial Bundled Cable Medium Voltage Overhead Cable 0

SPECIFICATION

Description	Phase conductor		Bare Conductor(ACSR)		Approx.Overall Diameter&Weight
	NO of Standing& Diameter	XLPE Thickness	NO of Stranding& Diameter		Diameter (mm)	Weight (kg/km)
	NO of Standing& Diameter	XLPE Thickness	AL	Steel	Diameter (mm)	Weight (kg/km)
1×10mm²+10mm²	7 /1.35	1.0	6/1.35	1/1.35	10.30	858
1×16mm²+16mm²	7/1.70	1.2	6/1.70	1/1.70	12.84	133.7
1×25mm²+25mm²	7/2.22	1.2	62.22	12.22	15.04	215.8
1×35mm²+35mm²	7/2.59	1.4	62.59	12.59	17.8B	294.0
1×50mm²+50mm²	7/3.10	1.4	63.10	13.10	19.68	410.2
1×70mm²+50mm²	19/2.22	1.4	6/3.10	1/3.10	21.38	574.3
1×95mm²+50mm²	19/2.59	1.4	6/3.10	13.10	22.98	704.5
2×10mm²+10mm²	7/1.35	1.0	6/1.35	1/1.35	12.30	120.7
2×16mm²+16mm²	7 /1.70	1.2	6/1.70	1/1.70	15.24	133.7
2×25mm²+25mm²	7/2.22	12	6/2.22	172.22	17.44	310.2
2×35mm²+35mm²	7/ 2.59	1.4	6/2.59	172.59	20.28	422.5
2×50mm²+50mm²	7/3.10	1.4	6/3.10	1/3.10	22.48	594.2
2×70mm²+50mm²	19/2.22	1.4	6/3.10	1/3.10	25.88	964.5
2×95mm²+50mm²	19/2.59	1.4	6/3.10	1/3.10	2908	1224.9
3×10mm²+10mm²	7/1.35	1.0	6/1.35	1/1.35	14.76	187.6
3×16mm²+16mm²	7/1.70	1.2	6/1.70	1/1.70	18.28	290.4
3×25mm²+25mm²	7/2.22	1.2	62.22	12.22	20.92	458.6
3×35mm²+35mm²	7/2.59	1.4	62.59	12.59	24.33	625.0
3×50mm²+50mm²	7/3.10	1.4	63.10	1/3.10	26.97	862.3
3×70mm²+50mm²	19/2.22	1.4	6/3.10	1/3.10	31.05	1354.7
3×95mm²+50mm²	19/2.59	1.4	6/3.10	1/3.10	34.89	1745.3

ABOUT US

15kV 35kV ACSR Conductor ABC Aerial Bundled Cable Medium Voltage Overhead Cable 3

WHY CHOOSE US

PROJECTS

15kV 35kV ACSR Conductor ABC Aerial Bundled Cable Medium Voltage Overhead Cable 5

PACKAGE

15kV 35kV ACSR Conductor ABC Aerial Bundled Cable Medium Voltage Overhead Cable 6

PARTNER

15kV 35kV ACSR Conductor ABC Aerial Bundled Cable Medium Voltage Overhead Cable 7

FAQ

Q‌.What is ACSR ABC Cable?‌
A. A hybrid overhead cable combining ACSR (Aluminum Conductor Steel Reinforced) core with ABC (Aerial Bundled Cable) insulation, designed for low-voltage (0.6/1kV) distribution with enhanced mechanical strength

Q‌.Key advantages over standard ABC cables?‌

A. 60% higher span capacity (up to 300m spans), 30% reduced sag under load, Maintains ABC's safety with full insulation

Q‌. Typical applications?‌

A. River/valley crossings in rural electrification, Temporary power for construction sites, Urban areas requiring compact line layouts

Q.Temperature rating?‌
A. Operates at -40°C to 90°C (95°C short-circuit tolerance), matching ACSR thermal properties

Q‌.Maintenance requirements?‌
A. Annual checks for: Corrosion at steel-aluminum interfaces, Insulation cracks (especially at suspension points), Neutral conductor integrity

Q‌. Cost comparison vs traditional options?‌

A. 20% cheaper than separate ACSR+ABC systems

40% lower lifetime cost than bare ACSR (reduced maintenance)
