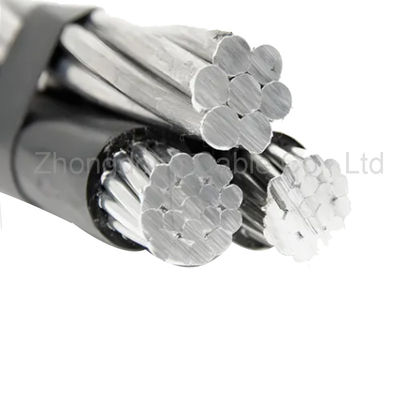

Low Voltage Aerial Bundled ABC Cable AAC AAAC ACSR 4mm2-630mm2 600V 1000V

Large Image : Low Voltage Aerial Bundled ABC Cable AAC AAAC ACSR 4mm2-630mm2 600V 1000V

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CCC,ISO,TUV,CE
Model Number:	ABC

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum/ Steel Drum
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

Low Voltage Aerial Bundled ABC Cable AAC AAAC ACSR 4mm2-630mm2 600V 1000V

Description

Application:	Overhead Distribution Line	Cores Nos:	1,2,3,4 More Multicore
Rated Voltage:	0.6/1 KV	Installation Degree:	-20℃-90℃
Neutral Messengers:	AAC, AAAC Or ACSR	Insulation:	XLPE/PE/PVC
Highlight:	1000V Aerial Bundled ABC Cable , 600V Aerial Bundled ABC Cable , Low Voltage Aerial Bundled ABC Cable

Low Voltage Aerial Bundled Cable AAC ABC AAAC ACSR 4mm2-630mm2 0.6/1kv Al/XLPE/PVC

Application:

Industrial Power Distribution: Factories, mining operations.
Renewable Energy Systems: Solar farms, wind turbines.
Public Infrastructure: Subways, tunnels (where low smoke and halogen-free properties are critical).
Buildings: Commercial complexes requiring fire-safe cabling.

‌

Low Voltage Aerial Bundled ABC Cable AAC AAAC ACSR 4mm2-630mm2 600V 1000V 0

Construction

Low Voltage Aerial Bundled ABC Cable AAC AAAC ACSR 4mm2-630mm2 600V 1000V 3

Advantages

Cost Efficiency: Aluminum reduces material costs compared to copper.
Safety: Halogen-free sheath minimizes toxic fumes during fires.
Durability: XLPE insulation resists thermal aging and environmental stress.

Specification

ominal Cross Section	Minimum Breaking Load	current Rating in Air	Nominal Over all Diameter	Total Weight	Outer Diameter
mm2	Kn	A	mm	kg/km	mm
2×16RM	1.910	2.5	72	147	15.6
2×25RM	1.200	4.0	107	208	18
2×35RM	0.868	5.5	132	277	20
2×50RM	0.641	8.0	165	361	23.5
4×16RM	1.910	2.5	72	286	18.8
4×25RM	1.200	4.0	107	430	21.2
4×35RM	0.868	5.5	132	553	24.1
4×50RM	0.641	8.0	165	746	27.8
4×70RM	0.443	10.7	205	1.009	31.8
4×95RM	0.320	13.7	240	1.332	37.8
4×120RM	0.253	18.6	290	1.632	54.4
4×35+1×35RM	0.868/0.868	5.5/5.5	132/132	694	30
4×50+1×25RM	0.641/1.200	8.0/4.0	165/107	814	31.9
4×50+1×35RM	0.641/0.868	8.5/5.5	165/132	845	31.9
4×70+1×25RM	0.443/1.200	10.7/4.0	205/107	1.105	36
4×70+2×25RM	0.443/1.200	10.7/4.0	205/107	1.217	40
4×70+1×35RM	0.443/0.868	10.7/5.5	205/132	1.15	36.2
