Aluminium Conductor 4 Core ABC Cable 4X16 4X25 4X35 4X50mm2 Low Voltage Cable

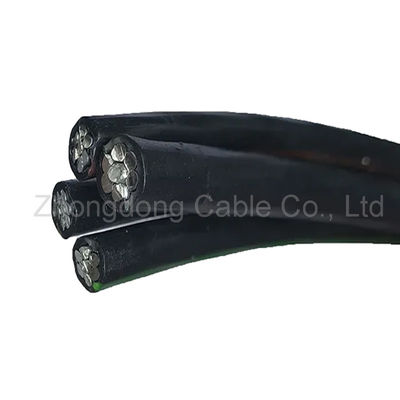

Large Image : Aluminium Conductor 4 Core ABC Cable 4X16 4X25 4X35 4X50mm2 Low Voltage Cable

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CCC,ISO,TUV,CE
Model Number:	ABC

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum/ Steel Drum
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

Aluminium Conductor 4 Core ABC Cable 4X16 4X25 4X35 4X50mm2 Low Voltage Cable

Description

Application:	Overhead Distribution Line	Cores Nos:	1,2,3,4 More Multicore
Rated Voltage:	0.6/1 KV	Installation Degree:	-20℃-90℃
Neutral Messengers:	AAC, AAAC Or ACSR	Insulation:	XLPE/PE/PVC
Highlight:	Aluminium Conductor 4 Core ABC Cable , 4X50mm2 Low Voltage ABC Cable , 4X35mm2 4 Core ABC Cable

Aluminium Conductor Aerial Bundled Cable 4X16 4X25 4X35 4X50 mm2 4 Cores Low Voltage ABC Cable

Application:

Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation, maintenance and operative cost. The cables are designed for aerial power lines and room-entrance wires with AC rated voltage 1kV and below.

Aluminium Conductor 4 Core ABC Cable 4X16 4X25 4X35 4X50mm2 Low Voltage Cable 0

Construction

Conductor: Aluminum (lightweight, cost-effective).
Insulation: XLPE (excellent thermal resistance, withstands temperatures up to 90°C).
Sheath: Typically low-smoke halogen-free (LSHF) compound for reduced toxicity and smoke emission during fires.

Aluminium Conductor 4 Core ABC Cable 4X16 4X25 4X35 4X50mm2 Low Voltage Cable 3

Specifications

NFC 33-209 Standard ABC Cable Product Parameters:

Number of Cores x Nominal Cross Section	Overal Diameter	Weight	Maximum Conductor Resistance	Minimum Breaking Load	Current Rating
No.x mm^2	mm	Kg/Km	Ω/Km	KN	A
2x10 RM	12.8	93	3.08	1.5	38
4x10 RM	15.4	183	3.08	1.5	38
2x16 RM	14.8	129	1.91	2.3	72
2x16 RN + 2x1.5 RE	14.8	176	1.910/12.100	2.3	72
4x16 RM	17.8	257	1.91	2.3	72
4x16 RN + 2x1.5 RE	17.8	304	1.910/12.100	2.3	72
2x25 RM	18	202	1.2	3.8	107
2x25 RM + 2x1.5 RE	18	249	1.200/12.100	3.8	107
4x25 RM	21.7	404	1.2	3.8	107
4x25 RM + 2x1.5 RE	21.7	451	1.200/12.100	3.8	107
2x35 RM	20.8	269	0.868	5.2	132
2x35 RM + 2x1.5 RE	20.8	316	0.868/12.100	5.2	132
4x35 RM	25.1	539	0.868	5.2	132
4x35 RM + 2x1.5 RE	25.1	586	0.868/12.100	5.2	132
2x50 RM	23.4	352	0.641	7.6	165
2x50 RM + 2x1.5 RE	23.4	399	0.641/12.100	7.6	165
1x54.6 RM + 3x25 RM	21.7	507	0.630/1.200	3.8	107
1x54.6 RM + 3x25 RM + 1x16 RM	24.3	573	0.630/1.200/1.910	3.8/2.3	107/72
1x54.6 RM + 3x25 RM + 2x16 RM	29.7	639	0.630/1.200/1.910	3.8/2.3	107/72
1x54.6 RM + 3x25 RM + 3x16 RM	31.1	705	0.630/1.200/1.910	3.8/2.3	107/72
1x54.6 RM + 3x35 RM	25.1	615	0.630/0.868	5.2	132
1x54.6 RM + 3x35 RM + 1x16 RM	28.1	680	0.630/0.868/1.910	5.2/2.3	132/72
1x54.6 RM + 3x35 RM + 2x16 RM	34.3	748	0.630/0.868/1.910	5.2/2.3	132/72
1x54.6 RM + 3x35 RM + 3x16 RM	35.9	814	0.630/0.868/1.910	5.2/2.3	132/72
1x54.6 RM + 3x35 RM + 1x25 RM	28.1	714	0.630/0.868/1.200	5.2/3.8	132/107
1x54.6 RM + 3x50 RM	28.2	741	0.630/0.641	7.6	165
1x54.6 RM + 3x50 RM + 1x16 RM	31.6	806	0.630/0.641/1.910	7.6/2.3	165/72
1x54.6 RM + 3x50 RM + 2x16 RM	38.6	875	0.630/0.641/1.910	7.6/2.3	165/72
1x54.6 RM + 3x50 RM + 3x16 RM	40.4	940	0.630/0.641/1.910	7.6/2.3	165/72
1x54.6 RM + 3x50 RM + 1x25 RM	31.6	841	0.630/0.641/1.200	7.6/3.8	165/107
1x54.6 RM + 3x70 RM	33	950	0.630/0.443	10.2	205
1x54.6 RM + 3x70 RM + 1x16 RM	37	1014	0.630/0.443/1.910	10.2/2.3	205/72
1x54.6 RM + 3x70 RM + 2x16 RM	45.2	1083	0.630/0.443/1.910	10.2/2.3	205/72
1x54.6 RM + 3x70 RM + 3x16 RM	47.3	1148	0.630/0.443/1.910	10.2/2.3	205/72
1x54.6 RM + 3x70 RM + 1x25 RM	37	1048	0.630/0.443/1.200	10.2/3.8	205/107
1x54.6 RM + 3x70 RM + 2x25 RM	45.2	1150	0.630/0.443/1.200	10.2/3.8	205/107
1x54.6 RM + 3x70 RM + 3x25 RM	47.3	1250	0.630/0.443/1.200	10.2/3.8	205/107
1x54.6 RM + 3x95 RM	37.4	1176	0.630/0.320	13.5	240
1x54.6 RM + 3x95 RM + 1x16 RM	41.9	1243	0.630/0.320/1.910	13.5/2.3	240/72
