Multi Core LSZH Low Smoke Zero Halogen Cable XLPE Steel Wire Armoured

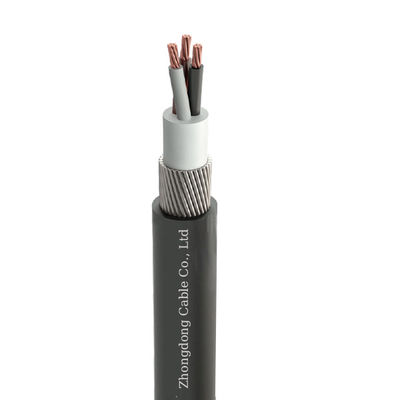

Large Image : Multi Core LSZH Low Smoke Zero Halogen Cable XLPE Steel Wire Armoured

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	IEC,ISO
Model Number:	WDZ-YJV23

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Steel wooden drum
Delivery Time:	10Days
Payment Terms:	L/C,T/T
Supply Ability:	100KM/WEEK

Contact Now

Multi Core LSZH Low Smoke Zero Halogen Cable XLPE Steel Wire Armoured

Description

Conductor Material:	Copper	Insulation Material:	XLPE
Jacket:	PVC Or PE	Core:	1 Core, 2 Core,3 Core,4 Core,5 Core
High Temperature:	90 °C	Conductor Material:	Copper Or Aluminum
Highlight:	Multi Core Low Smoke Zero Halogen Cable , Steel Wire Armoured LSZH Cable

Multi Core Low Smoke Zero Halogen Cable XLPE Steel Wire Armoured

Application

For fixed installation of the transmission and distribution systems, tunnels and pipelines and other occasions .For situation not suppose to bear the external mechanical force.

Constructions

Conductor: Plain circular stranded copper conductor, conform to IEC 60228 class 2

Insulation: XLPE

Amour: Steel Wire armour

Core Conductor :annealed copper (stranded core)

Popular sizes: 2~5 core x1.5~630mm²
Jacket: LSZH
Voltage suitable: 0.6/1kV
Fire performance: IEC 60332-1

Specification

0.6/1kV 4 Core Copper Conductor Steel Wire Armoured Cable Parameter
Nominal cross-sectional area	Insulation thickness	Sheath thickness	Approx.overall dimaeter of cable	Approx. weight of cable(kg/km)
mm2	mm	mm	mm
4x1.5	0.7	1.8	15.9	423.9
4x2.5	0.7	1.8	17.8	612.8
4x4	0.7	1.8	19.3	734.4
4x6	0.7	1.8	20.7	861.4
4x10	0.7	1.8	23.3	1108
4x16	0.7	1.8	26.6	1593
4x25	0.9	1.8	29.8	2092.5
4x35	0.9	1.9	32.5	2589.1
4x50	1	2.1	36.9	3461.8
4x70	1.1	2.2	41.8	4526.4
4x95	1.1	2.3	46.5	5808.6
4x120	1.2	2.5	52.3	7472.2
4x150	1.4	2.7	57.3	8958.3
4x185	1.6	2.8	62.6	10801.8
4x240	1.7	3.1	70.1	13436.4
4x300	1.8	3.3	75.9	16217.2
4x400	2	3.6	86.3	21548.9
