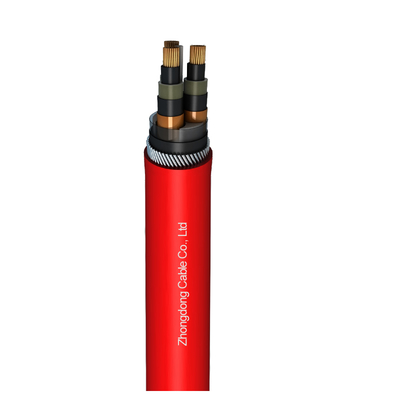

Medium Voltage Low Smoke Zero Halogen Cable LSZH 19/33 (36)kV CU/XLPE/SWA/ LSZH EN60228

APPLICATION

For installation in ground, outdoors, indoors and in cable ducts forpower station, industry and distribution networks.

CONSTRUCTION

• Conductor: Circular stranded, compacted copper conductor or aluminum conductor, class 2
• Conductor Screen:Semi-conducting Compound
• Insulation:XLPE (Cross-linked polyethylene)
• Insulation Screen:Semi-conducting Compound
• Metallic Screen:Copper Tape
• Filler (only for multi core cable)  Non-hygroscopic
• Binder Tape:Non-woven fabric
• Separation Sheath  PVC (Polyvinyl chloride)
• Armour: Single core: Aluminum Wire Armour(AWA)Three cores: Galvanized SteelTape(STA) or Galvanized Steel Wire(SWA)
• Outer Sheath: PVC (Polyvinyl chloride), PE( Polyethylene), LSZH(Low Smoke Zero Halogen

STANDARD

VDE 0276 part 604, VDE 0482-266-2, DIN EN 60332-3 / EN50266-2

SPECIFICATION

OUR FACTORY

APPLICATION

FAQ

1. What’s medium voltage low smoke halogen-free armored cable all about?
Alright, so these cables are made for electrical systems that run on medium voltage. What's cool about them is that they're halogen-free, which means they produce way less toxic smoke in a fire situation. Plus, they're armored up to give them some extra physical protection.

2. What are the perks of using armored cables?
Armored cables are great because they resist mechanical damage and can stand up to tough environments. They’re pretty much like a protective shell, which keeps them safe from physical impacts, pesky rodents, and all that outside pressure.

3. Where are medium voltage low smoke halogen-free armored cables usually used?
Public buildings, industrial sites, or anywhere that has a higher fire risk.

4. How does the design of these cables impact how they’re installed?
Well, the design—especially the armoring—can mean you need some specific installation methods to keep everything working well. You’ll need to think about things like bending radius and how you connect everything up.

5. How do these cables help the environment?
By using materials that are halogen-free and producing low smoke, these cables do a lot to lessen their impact on the environment. They really boost safety in places where a lot of people are around.
