6/10 KV Medium Voltage Low Smoke Zero Halogen LSZH Wire Fire Resistant

Large Image : 6/10 KV Medium Voltage Low Smoke Zero Halogen LSZH Wire Fire Resistant

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	IEC,CE,ISO,TUV
Model Number:	NYBY NAYBY

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

6/10 KV Medium Voltage Low Smoke Zero Halogen LSZH Wire Fire Resistant

Description

Voltage:	6/10 KV	Insulation:	XLPE
Jacket:	LSZH	Feature:	LSZH
Amour:	Steel Tape	Application:	Underground, Overhead, Indoor, Mining And Power Distribution Etc
Highlight:	Fire Resistant LSZH Wire 10 KV , 10 KV Low Smoke Zero Halogen Wire

6/10 KV Medium Voltage Low Smoke Zero Halogen Cable LSZH Fire Resistant

Application

Medium-voltage low-smoke zero-halogen (LSZH) cables are engineered for applications prioritizing fire safety, minimal toxic emissions, and environmental protection.

6/10 KV Medium Voltage Low Smoke Zero Halogen LSZH Wire Fire Resistant 0

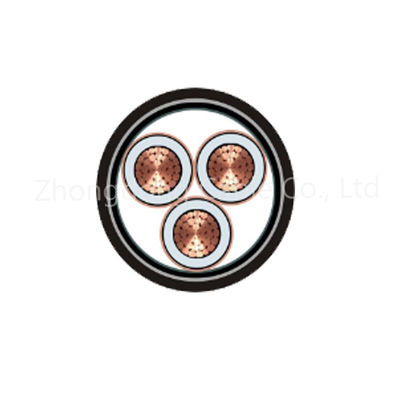

Construction

Conductor :Class 2 stranded copper conductor
Insulation :XLPE (Cross-Linked Polyethylene)
Bedding :LSZH (Low Smoke Zero Halogen)
Armour :STA (Steel Tape Armour)
Sheath :LSZH (Low Smoke Zero Halogen)

Advantage

Enhanced Fire Safety Low Smoke Emission‌: Minimal smoke during combustion improves visibility for evacuation and firefighting.
Flame Retardant‌: Self-extinguishing properties prevent flame spread.
‌Toxicity Reduction‌:‌Halogen-Free‌: Eliminates toxic/corrosive gases (e.g., chlorine, hydrogen chloride) during fires, protecting people and equipment.
‌Environmental Compliance‌:Eco-friendly materials align with RoHS and REACH regulations, reducing environmental harm during disposal.

Specification

Diam.over screen [mm]	Nom.diam.overbed. [mm]	Nom.armour wire diam. [mm]	Diam.over armour [mm]	Approx. weight [kg/100m]
16.11	35.6	2	42.7	330.0
17.09	37.8	2.5	46.2	430.0
18.11	39.2	2.5	27.8	490.0
19.26	41.7	2.5	50.2	565.0
20.86	45.5	2.5	54.2	680.0
22.75	49.0	2.5	57.9	795.0
24.33	52.4	2.5	61.3	910.0
25.75	55.5	2.5	64.6	1020.0
27.36	59.2	2.5	68.4	1150.0
29.79	64.4	3.15	75.0	1470.0
32.16	69.7	3.15	80.5	1710.0
35.26	76.8	3.15	88.0	2070.0
38.16	83.0	3.15	94.5	2450.0
