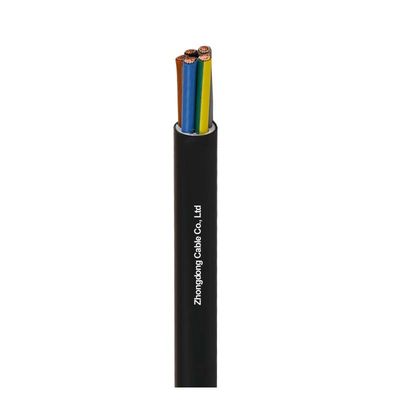

Low Smoke Zero Halogen Cable LSZH IEC 60502 N2XH 4 Core 5 Core Multi Core EN 60332-3

Low Smoke Zero Halogen Cable LSZH IEC 60502 N2XH 4 Core 5 Core Multi Core EN 60332-3
Low Smoke Zero Halogen Cable LSZH IEC 60502 N2XH 4 Core 5 Core Multi Core EN 60332-3

Large Image :  Low Smoke Zero Halogen Cable LSZH IEC 60502 N2XH 4 Core 5 Core Multi Core EN 60332-3

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: IEC,CE,ISO,TUV
Model Number: N2xh N2xh-J N2xh-O
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time: 7-30 days based on different qty
Payment Terms: ,L/C,T/T
Supply Ability: 100KM/Week
Contact Now

Low Smoke Zero Halogen Cable LSZH IEC 60502 N2XH 4 Core 5 Core Multi Core EN 60332-3

Description
Voltage: 0.6/1kV Insulation: XLPE
Jacket: Lszh Feature: LSZH
No Of Cores: 1,2,3,4,5 Standards: VDE 0276 Part 604, VDE 0482-266-2, DIN EN 60332-3 / EN50266-2
Highlight:

IEC 60502 N2XH Cable

,

Zero Halogen LSZH Cable

,

LSZH IEC 60502 Cable

 Low Smoke Zero Halogen Cable  LSZH IEC 60502 N2XH 4 Core 5 Core Multi Core EN 60332-3



APPLICATION


Low-smoke zero-halogen (LSZH) cables are widely used in environments where fire safety and air quality are critical


CONSTRUCTION

Conductor: The first or second type of copper conductor

Insulation:XLPE

Sheath: LSZH



Low Smoke Zero Halogen Cable LSZH IEC 60502 N2XH 4 Core 5 Core Multi Core EN 60332-3 0



STANDARD

VDE 0276 part 604, VDE 0482-266-2, DIN EN 60332-3 / EN50266-2

ADVANTAGE

Halogen-free: Prevents acidic gas formation

Low smoke: Maintains visibility in emergencies

Eco-friendly: Meets RoHS/WEEE standards

LSZH cables prioritize life safety over cost, making them ideal for confined or high-occupancy


SPECIFICATION



Dimensions - Number of cores x cross-section Construction of the individual keep the handlers safe The outer diameter thickness of insulation shell thickness Resistance to keep the handlers safe at 20 ° C weight of cable
  rated about rated rated max. about
N x mm² n x mm mm mm mm Ω/km kg/km
1 x 1,5 1 x 1,38 5,4 1,38 0,15 12,10 43
1 x 4 1 x 2,25 6,4 2,25 0,20 4,61 75
1 x 16 7 x 1,70 9,1 5,00 0,36 1,15 202
1 x 25 7 x 2,13 11 6,10 0,48 0,727 302
1 x 70 19 x 2,17 15 10,10 0,84 0,268 745
1 x 95 19 x 2,52 17 11,90 0,97 0,193 986
1 x 185 37 x 2,52 23 16,20 1,72 0,0991 1888
1 x 300 61 x 2,50 28 20,60 2,34 0,0601 2945

2 x 1,5 1 x 1,38 9 1,38 0,38 12,10 120
2 x 2,5 1 x 1,78 10 1,78 0,45 7,41 154
2 x 16 7 x 1,70 16 5,00 1,06 1,15 563
2 x 25 7 x 2,13 20 6,10 1,52 0,727 840
2 x 35 7 x 2,52 22 7,20 1,79 0,524 1106
2 x 120 37 x 2,03 36 13,00 4,23 0,153 3343
2 x 300 61 x 2,50 55 20,60 9,39 0,0601 8072

3 x 1,5 1 x 1,38 9 1,38 0,44 12,10 135
3 x 2,5 1 x 1,78 10 1,78 0,51 7,41 181
3 x 4 1 x 2,25 11 2,25 0,60 4,61 242
3 x 10 1 x 3,56 14 3,57 0,83 1,83 464
3 x 16 7 x 1,70 17 5,00 1,22 1,15 697
N2XH
3 x 35 7 x 2,52 23 7,20 2,08 0,524 1393
3 x 50 19 x 1,83 26 8,30 2,56 0,387 1847
3 x 70 19 x 2,17 31 10,10 3,43 0,268 2666
3 x 95 19 x 2,52 36 11,90 4,17 0,193 3535
3 x 120 37 x 2,03 38 13,00 4,74 0,153 4322
3 x 185 37 x 2,52 48 16,20 7,40 0,0991 6742
3 x 300 61 x 2,50 59 20,60 10,79 0,0601 10522

4 x 1,5 1 x 1,38 10 1,38 0,52 12,10 163
4 x 2,5 1 x 1,78 11 1,78 0,60 7,41 214
4 x 10 1 x 3,56 16 3,57 1,03 1,83 586
4 x 16 7 x 1,70 19 5,00 1,50 1,15 874
4 x 35 7 x 2,52 26 7,20 2,57 0,524 1777
4 x 50 19 x 1,83 29 8,30 3,15 0,387 2343
4 x 120 37 x 2,03 43 13,00 5,98 0,153 5558
4 x 185 37 x 2,52 53 16,20 9,35 0,0991 8657
4 x 240 61 x 2,24 60 18,80 11,54 0,0754 11385
4 x 300 61 x 2,50 65 20,60 13,44 0,0601 13539
N2XH
5 x 1,5 1 x 1,38 11 1,38 0,62 12,10 193
5 x 4 1 x 2,25 13 2,25 0,85 4,61 352
5 x 6 1 x 2,76 15 2,76 0,99 3,08 475
5 x 16 7 x 1,70 21 5,00 1,87 1,15 1081
5 x 25 7 x 2,13 26 6,10 2,61 0,727 1631
5 x 50 19 x 1,83 33 8,30 3,89 0,387 2915


WAREHOUSE

Low Smoke Zero Halogen Cable LSZH IEC 60502 N2XH 4 Core 5 Core Multi Core EN 60332-3 1


APPLICATION

Low Smoke Zero Halogen Cable LSZH IEC 60502 N2XH 4 Core 5 Core Multi Core EN 60332-3 2Low Smoke Zero Halogen Cable LSZH IEC 60502 N2XH 4 Core 5 Core Multi Core EN 60332-3 3

Low Smoke Zero Halogen Cable LSZH IEC 60502 N2XH 4 Core 5 Core Multi Core EN 60332-3 4Low Smoke Zero Halogen Cable LSZH IEC 60502 N2XH 4 Core 5 Core Multi Core EN 60332-3 5


FAQ

Q1: Are you a factory?
A1:We are a manufacturer with more than 20 years of experience.
Q2: How about MOQ ?
A2: We adopt flexible MOQ policy.

Q3: How long is your delivery time?
A3: Generally it is 3-7 days if wires are in stock. if wires are not in stock, it is according to quantity.
Q4: Can I see the sample first before I place the real order ?
A4: Of course. We can offer samples for testing .
Q5 : Can I get a discount?
A5:It depends on your quantity. Please contact us.
Q6: Do you accept OEM/ODM?
A6:We support OEM/ODM service
