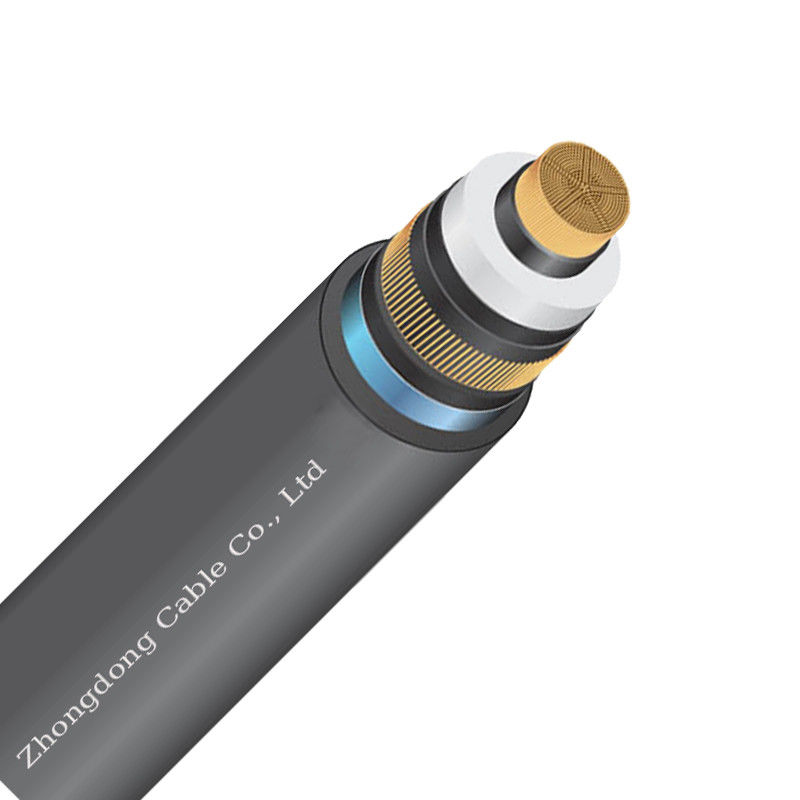

High Temperature Resistant Low Smoke Zero Halogen Cable Copper Conductor Screen

Application

The Cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial,aerial supported by a messenger, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 90°C for normal operation in wet and dry locations, 130°C for emergency overload, and 250°C for short circuit conditions

Construction

1. Conductor :Class 2 stranded copper conductor
2. Insulation :XLPE (Cross-Linked Polyethylene)
3. Bedding :LSZH (Low Smoke Zero Halogen)
4. Screen :Copper
5. Armouring: Steel Tape
6. Sheath :LSZH (Low Smoke Zero Halogen)

Advantage

1. Composite high temperature resistance performance
2. Compressive and tensile strengthening
3. LSZH jacket
4. Anti bending and anti deformation
5. Electromagnetic and Environmental Adaptability
6. Low frequency interference shielding
7. Chemical corrosion protection
8. Direct burial without conduit
9. Extended lifespan

Specification
