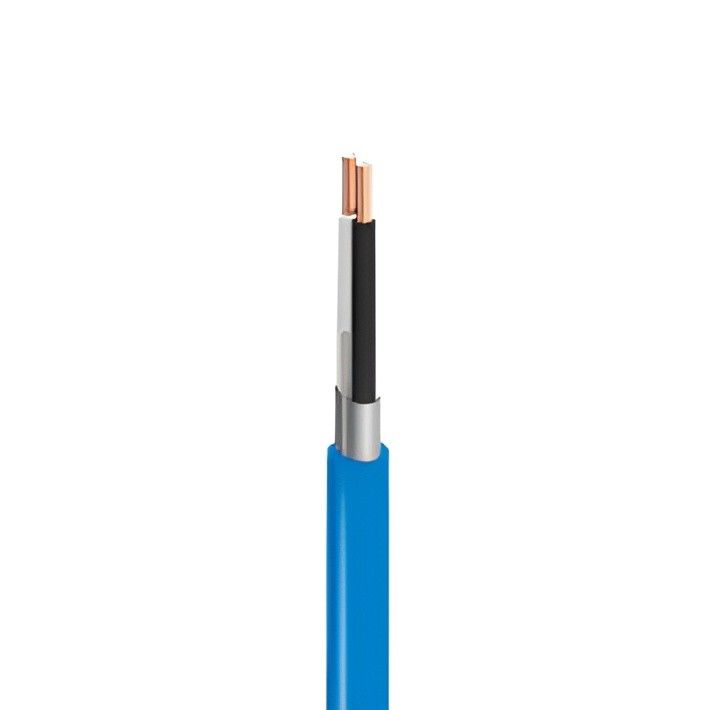

XLPE Insulation Al/PET Shielded Instrument Cable 300V 0.5mm 0.75mm

XLPE Insulation Al/PET Shielded Instrument Cable 300V 0.5mm 0.75mm
XLPE Insulation Al/PET Shielded Instrument Cable 300V 0.5mm 0.75mm

Large Image :  XLPE Insulation Al/PET Shielded Instrument Cable 300V 0.5mm 0.75mm

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: IEC,CE,ISO
Model Number: Shielded Instrument Cable
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden drums
Delivery Time: 10Days
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Contact Now

XLPE Insulation Al/PET Shielded Instrument Cable 300V 0.5mm 0.75mm

Description
Conductor: Copper Insulation: XLPE
Drain Wire: Tinned Copper Voltage Rating: 300V
Outer Sheath Colour: Black,Blue Temperature: Fixed -40°C To +80°C
Highlight:

0.75mm Shielded Instrument Cable 300V

,

XLPE Insulation Shielded Instrument Cable

XLPE Insulation Al/PET Shielded Instrument Cable 0.5mm  0.75mm

Application

Instrument shielded cables are specialized cables designed for transmitting low-voltage signals in environments where electromagnetic interference (EMI) and noise can affect signal integrity. These cables are widely used in industrial, commercial, and scientific applications due to their ability to provide reliable and accurate signal transmission.

parameter

Voltage Rating :300V
Operating Temperature :Fixed: -40°C to +80°C  Flexed: 0°C to +50°C

Minimum internal bending radius 6*cable Diameter

Conductor :0.5mm² - 0.75mm²:  Copper        1mm² and above:  Copper

Insulation :XLPE
Collective Screen :Al/PET (Aluminium/Polyester Tape)
Drain Wire :Tinned copper
Sheath :LSZH (Low Smoke Zero Halogen) - UV Resistan



Type Optional:



No. Optional Type Instrumenation Cable Description
1 DJYVPR Instrumenation soft cable with Cu core, PE insulation, PVC sheath, copper wire braided overall shielding
2 DJYPVP Instrumenation cable with Cu core, PE insulation, PVC sheath, copper wire braided individual & overall shielding
3 DJYPVPR Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, copper wire braided individual & overall shielding
4 DJYVP2R Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, copper tape wrapping overall shielding
5 DJYP2VR Instrumenation cable with flexible Cu core, PE insulation, PVC sheath,copper tape wrapping individual shielding
6 DJYP2VP2R Instrumenation cable with flexible Cu core, PE insulation, PVC sheath,copper tape wrapping individual & overall shielding
7 DJYVP3R Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping overall shielding
8 DJYP3VR Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping indivadual shielding
9 DJYP3VP3 Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping indivadual & overall shielding
10 DJYP3VP3R Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping indivadual & overall shielding
