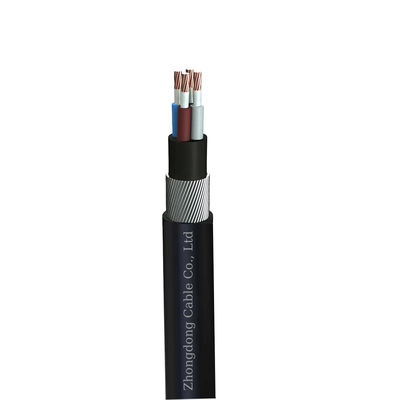

SWA Copper Conductor Armoured Electrical Cable 0.6kv 1kV XLPE Insulated 4 Core

SWA Copper Conductor Armoured Electrical Cable 0.6kv 1kV XLPE Insulated 4 Core
SWA Copper Conductor Armoured Electrical Cable 0.6kv 1kV XLPE Insulated 4 Core

Large Image :  SWA Copper Conductor Armoured Electrical Cable 0.6kv 1kV XLPE Insulated 4 Core

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: IEC,CE,CCC,ISO
Model Number: YJV32
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10work days
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Contact Now

SWA Copper Conductor Armoured Electrical Cable 0.6kv 1kV XLPE Insulated 4 Core

Description
Insulation: XLPE/PVC Out Sheath Color: Black Or Customized
Core: 4 Armoured: SWA/STA
Conductor Material: Copper Sizes: 1- 630mm2
Highlight:

SWA Armoured Electrical Cable 0.6kv

,

1kV 4 Core Copper Armoured Cable

SWA Copper Conductor Armoured Electrical Cable  0.6/1kV XLPE  Insulated  4 Core

Application

Armored cables designed for permanent installations, suitable for both indoor and outdoor use, whether installed in air or underground.They can be mounted on walls, placed in cable ducts, or laid on cable trays.These cables are not intended for installation in wet or submerged conditions.

Construction

Conductor :Class 2 stranded copper conductor
Insulation :XLPE (Cross-Linked Polyethylene)
Bedding :PVC (Polyvinyl Chloride)
Armour :SWA (Steel Wire Armour)
Sheath :PVC (Polyvinyl Chloride)

Standards

International: IEC 60502-1,National:GB/ T 12706.1-2008

Characteristics

Voltage Rating Uo/U :0.6/1kV
Temperature Rating :Fixed: -25°C to +90°C

Specifications



Nom. Cross-section of conductor

Strands

No./Dia. Of Conductor

 Insulation Thickness Inner Covering Thickness Dia. Of Armor Wire Sheath Thickness Approx. O.D.

Approx.

Weight

 Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm 　 　 mm (mm) kg/km Ω /km kV/5min In air (A) In soil(A)
4 × 4 7/0.85 0.7 1.0 0.9 1.8 18.0 699 4.61 3.5 34 45
4 × 6 7/1.04 0.7 1.0 1.25 1.8 19.0 820 3.08 3.5 43 57
4 × 10 7/1.38 0.7 1.0 1.25 1.8 22.0 1233 1.83 3.5 60 77
4 × 16 7/1.78 0.7 1.0 1.6 1.8 24.5 1550 1.15 3.5 83 105
4 × 25 7/2.14 0.9 1.0 1.6 1.8 29.2 2036 0.727 3.5 105 125
4 × 35 7/2.52 0.9 1.0 2.0 1.9 32.5 2501 0.524 3.5 125 155
4 × 50 10/2.52 1.0 1.0 2.0 2.0 33.0 3064 0.387 3.5 160 185
4 × 70 14/2.52 1.1 1.0 2.0 2.1 37.0 3974 0.268 3.5 200 225
4 × 95 19/2.52 1.1 1.2 2.0 2.3 43.0 5032 0.193 3.5 245 270
4 × 120 24/2.52 1.2 1.2 2.5 2.5 45.0 6327 0.153 3.5 285 310
4 × 150 30/2.52 1.4 1.4 2.5 2.7 51.0 7765 0.124 3.5 325 345
4 × 185 37/2.52 1.6 1.4 2.5 2.8 56.0 9205 0.0991 3.5 375 390
4 × 240 48/2.52 1.7 1.4 2.5 3.0 62.0 11444 0.0754 3.5 440 450
4 × 300 61/2.52 1.8 1.6 2.5 3.2 67.0 13830 0.0601 3.5 505 515
4 × 400 61/2.97 2.0 1.6 3.15 3.5 74.0 19673 0.0470 3.5 570 575
