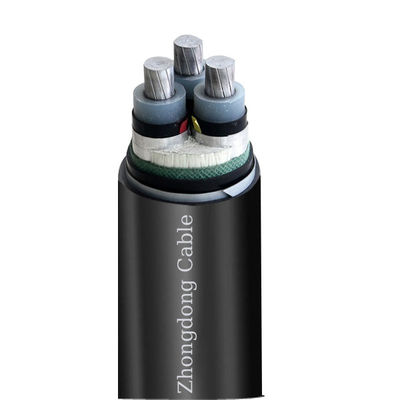

3 Core Armoured Aluminium Alloy Conductor Cable XLPE Insulation STA Armour

3 Core Armoured Aluminium Alloy Conductor Cable XLPE Insulation STA Armour
3 Core Armoured Aluminium Alloy Conductor Cable XLPE Insulation STA Armour

Large Image :  3 Core Armoured Aluminium Alloy Conductor Cable XLPE Insulation STA Armour

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: CCC,ISO,CE,TUV
Model Number: YJLHV22
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10work days
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Contact Now

3 Core Armoured Aluminium Alloy Conductor Cable XLPE Insulation STA Armour

Description
Insulation: XLPE Armour Type: STA
Conductor Material: Aluminium Alloy Conductor Cores: 3 Core
Sheath: PVC Voltage: 8.7/15kv
Highlight:

3 Core Aluminium Alloy Conductor Cable

,

Alloy Conductor Cable XLPE Insulation

3 Core Armoured Aluminium Alloy Conductor Cable XLPE Insulation

Product Description

Aluminum alloy power cable is a new type of material power cable that uses AA8030 series aluminum alloy material as conductor, adopts special roll-formed wire stranding production process and annealing treatment and other advanced technologies.

Application

Aluminum alloy cables are widely used in various fields due to their lightweight, cost-effectiveness, and excellent electrical conductivity. Below is an overview of their main applications:Construction Sector,Industrial Sector,Municipal Engineering,Temporary Power Supply,Humid Environments,High-Temperature Environments.

Features

  • Product Name: Medium Voltage Power Cables
  • Product Category: Medium Voltage Power Cables
  • Conductor Material: Aluminium Alloy Conductor
  • Insulation: XLPE(TR-XLPE Optional)
  • Outer Sheath Material: PE,PVC,LSZH
  • STA armored MV power cable
  • MV underground cable 3core
  • STA armored MV power cable

parameter

Wire core section(mm²) Conductor outer diameter(mm) Sheath thickness(mm) Cable outer diameter ( mm ) 20℃ Conductor DC resistance(Ω/km) Cable reference weight(kg/km) Cable laid in the air
Current carrying capacity(A)		 Cable directly buried in soil
Current carrying capacity(A)
3×25 6.13  2.0  26.0  ≤1.20 620  103  111
3×35 6.94  2.0  27.8  ≤0.868 709  119  128
3×35 8.75  2.0  32.2  ≤0.641 976  158  170
3×70 9.79  2.5  35.1  ≤0.443 1171  186  197
3×95 12.31  2.5  42.7  ≤0.320 1717  246  263
3×120 13.55  2.0  45.8  ≤0.253 1982  275  295
3×150 14.73  3.0  49.8  ≤0.206 2319  309  321
3×185 15.98  3.0  53.6  ≤0.164 2669  339  367
3×240 19.03  3.0  61.4  ≤0.125 3592  428  456
3×300 31.08  3.5  66.5  ≤0.100 4229  483  512
3×400 23.50  3.5  72.6  ≤0.0778 6102  549  589
