Single Core Aluminium Conductor Cable Shield Steel Tape Armoured XLPE Insulated 12/20kV

Large Image : Single Core Aluminium Conductor Cable Shield Steel Tape Armoured XLPE Insulated 12/20kV

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	ISO9001, CE, CCC, RoHS, VDE, cUL, CSA

Payment & Shipping Terms:

Minimum Order Quantity:	To be negotiated
Price:	To be negotiated
Packaging Details:	Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

Single Core Aluminium Conductor Cable Shield Steel Tape Armoured XLPE Insulated 12/20kV

Description

Insulation:	XLPE HPDE	Voltage:	18/30kV
Length:	Customized	Conductor Material:	Copper
Packing:	Neutral Carton Packing Or Customized	Application:	Overhead
Highlight:	Single Core Aluminium Conductor Cable , 20kV Aluminium Conductor Cable , XLPE Insulated Aluminium Conductor Cable

Single Core Aluminium Conductor Cable Copper Tape Shield Steel Tape Armoured XLPE Insulated 12/20kV

Application

Suitable for urban underground power grids, power station outgoing lines, internal power supply lines of industrial and mining enterprises, etc.

Construction

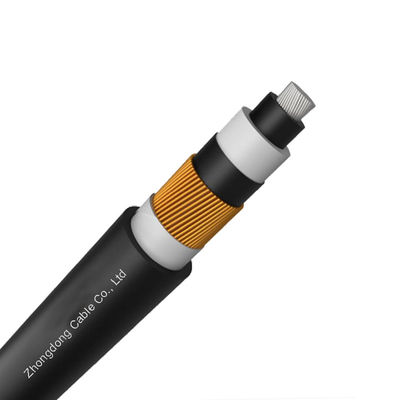

Single Core Aluminium Conductor Cable Shield Steel Tape Armoured XLPE Insulated 12/20kV 0

Conductor
Conductor Shiel
Insulation
Metal Shield Layer
Filler
Binder Tape
Armouring
Outer sheath

Laying Method

Pipe laying, trench laying, tunnel laying, vertical shaft and bridge laying, etc.

Specification

YJLHV62 YJLHV22-12/20kV Cable Structure Parameters

Specs mm²	Conductor diameter mm	Outer thickness of insulation ±1.0mm	Approx outer diameter of cable mm	Approx cable weight kg/km
1×35	6.6±0.2	20.0	27.8	965
1×50	7.6±0.2	21.0	28.8	1066
1×70	9.2±0.2	22.6	30.6	1203
1×95	10.9±0.2	24.3	32.3	1340
1×120	12.2±0.2	25.6	33.8	1483
1×150	13.6±0.2	27.0	36.5	1955
1×185	15.2±0.2	28.6	38.2	2164
1×240	17.4±0.2	30.8	40.6	2455
1×300	19.5±0.2	32.9	43.1	2773
1×400	220±0.2	35.4	45.7	3217
1×500	24.8±0.2	39.0	49.7	3750
1×630	282±0.2	42.4	53.4	4360
1×800	34.0±0.2	48.2	59.4	5192
