400sqmm Single Core Aluminium Power Cable Armoured STA 35kV Cu XLPE PVC STA

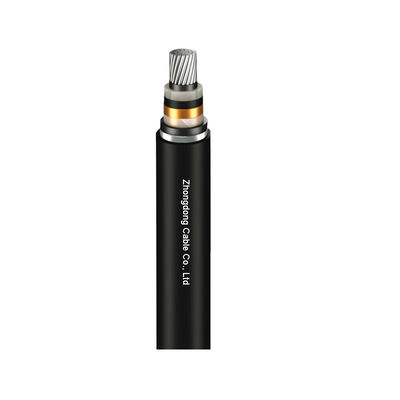

Large Image : 400sqmm Single Core Aluminium Power Cable Armoured STA 35kV Cu XLPE PVC STA

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	ISO9001, CE, CCC, RoHS, VDE, cUL, CSA

Payment & Shipping Terms:

Minimum Order Quantity:	To be negotiated
Price:	To be negotiated
Packaging Details:	Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

400sqmm Single Core Aluminium Power Cable Armoured STA 35kV Cu XLPE PVC STA

Description

Insulation:	XLPE HPDE	Voltage:	26/35kV
Length:	Customized	Conductor Material:	Aluminium Alloy
Packing:	Neutral Carton Packing Or Customized	Application:	Overhead
Highlight:	Single Core Aluminium Power Cable , Armoured STA Aluminium Power Cable , 400sqmm Aluminium Power Cable

400sq mm Single Core Aluminium Conductor Cable Armoured STA 35kV Cu/XLPE/PVC/STA

Application

‌Renewable Energy Systems‌: Widely used in solar farms and wind power projects due to lightweight design and corrosion resistance

‌Industrial and Urban Infrastructure‌: Ideal for underground burial, tunnels, and industrial plants requiring durable, corrosion-resistant power distribution

‌Transportation Networks‌: Deployed in subways, railways, and airports where flexibility and reduced cable weight are critical

‌Commercial and Residential Buildings‌: Replaces traditional copper cables in electrical grids, offering cost savings without compromising safety

400sqmm Single Core Aluminium Power Cable Armoured STA 35kV Cu XLPE PVC STA 0

Construction

Conductor
Conductor Shiel
Insulation
Metal Shield Layer
Filler
Binder Tape
Armouring
Outer sheath

Laying Method

Pipe laying, trench laying, tunnel laying, vertical shaft and bridge laying, etc.

Specification

Specs mm²	Conductor diameter mm	Outer thickness of insulation ±1.0mm	Approx outer diameter of cable mm	Approx cable weight kg/km
1×50	7.6±0.2	31.2	41.2	2192
1×70	9.2±0.2	32.8	43.0	2376
1×95	10.9±0.2	34.5	44.7	2554
1×120	12.2±0.2	35.8	46.1	2738
1×150	13.6±0.2	37.2	47.7	2939
1×185	15.2±0.2	38.8	49.5	3182
1×240	17.4±0.2	41.0	51.7	3493
1×300	19.5±0.2	43.1	54.1	3855
1×400	22.0±0.2	45.6	56.8	4349
1×500/35	24.8±0.2	49.2	63.1	5275
1×630/35	28.2±0.2	52.6	66.9	5949
1×800/35	34.0±0.2	58.4	72.8	6872
