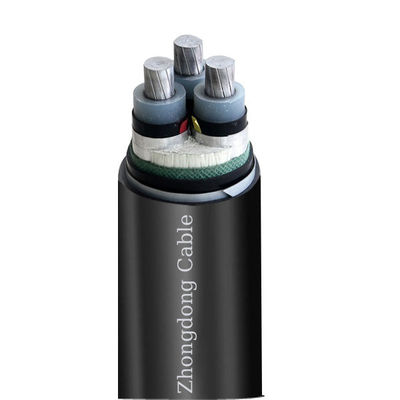

Medium Voltage 26/35 KV Aluminum Conductor Cable Copper Tape Shield PVC Sheath

Large Image : Medium Voltage 26/35 KV Aluminum Conductor Cable Copper Tape Shield PVC Sheath

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	ISO9001, CE, CCC, RoHS, VDE, cUL, CSA

Payment & Shipping Terms:

Minimum Order Quantity:	To be negotiated
Price:	To be negotiated
Packaging Details:	Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

Medium Voltage 26/35 KV Aluminum Conductor Cable Copper Tape Shield PVC Sheath

Description

Insulation:	XLPE HPDE	Voltage:	26/35kV
Length:	Customized	Conductor Material:	Aluminium Alloy
Packing:	Neutral Carton Packing Or Customized	Application:	Overhead
Highlight:	PVC Sheath Aluminum Conductor Cable , Medium Voltage Aluminum Conductor Cable

Medium Voltage 26/35 kV Aluminium Conductor Cable Copper Tape Shield PVC Sheath

Application

Suitable for urban underground power grids, power station outgoing lines, internal power supply lines of industrial and mining enterprises, etc.

Construction

Conductor
Conductor Shiel
Insulation
Metal Shield Layer
Filler
Binder Tape
Armouring
Outer sheath

Laying Method

Pipe laying, trench laying, tunnel laying, vertical shaft and bridge laying, etc.

Specification

Specs mm²	Conductor diameter mm	Outer thickness of insulation ±1.0mm	Approx outer diameter of cable mm	Approx cable weight kg/km	Specs mm²	Conductor diameter mm	Outer thickness of insulation ±1.0mm	Approxi outer diameter of cable mm	Approx cable weight kg/km
1×25	6.0±0.1	12.2	21.1	604	3×25	6.0±0.1	12.2	39.0	1909
1×35	6.6±0.2	12.8	21.7	670	3×35	6.6±0.2	12.8	41.6	2167
1×50	7.6±0.2	13.8	22.9	759	3×50	7.6±0.2	13.8	44.6	2485
1×70	9.2±0.2	15.4	24.5	869	3×70	9.2±0.2	15.4	48.2	2899
1×95	10.9±0.2	17.1	26.4	993	3×95	10.9±0.2	17.1	51.6	3338
1×120	12.2±0.2	18.4	27.7	1110	3×120	12.2±0.2	18.4	54.9	3802
1×150	13.6±0.2	19.8	29.2	1253	3×150	13.6±0.2	19.8	58.0	4292
1×185	15.2±0.2	21.4	30.8	1412	3×185	15.2±0.2	21.4	61.9	4861
1×240	17.4±0.2	23.8	33.4	1669	3×240	17.4±0.2	23.8	67.5	5777
1×300	19.5±0.2	26.3	37.5	2306	3×300	19.5±0.2	26.3	73.1	6782
1×400	22.0±0.2	29.2	40.6	2758	3×400	22.0±0.2	29.2	82.7	9086
1×500	24.8±0.2	33.2	45.0	3296	3×500	24.8±0.2	332	90.4	10871
1×630	28.2±0.2	366	48.7	3875	3×630	282±0.2	36.6	98.7	12870
1×800	34.0±0.2	42.4	54.7	4663
