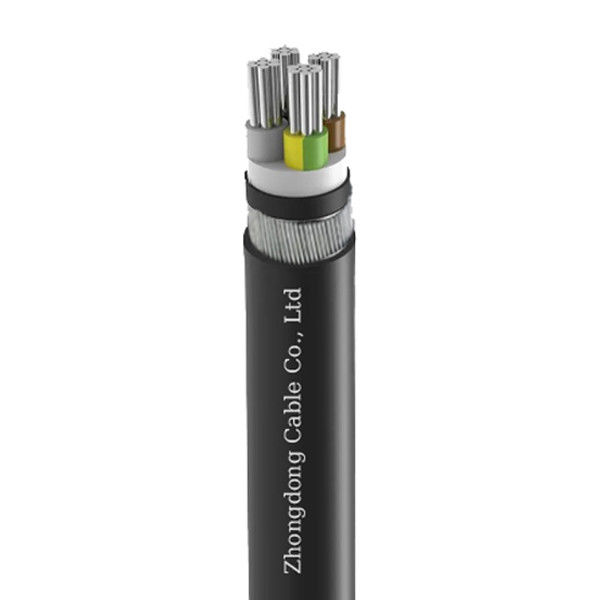

Underground Galvanized Steel Wire Armored Cable XLPE Insulted NYR2Y NAYR2Y

Nominal section area

Approx. overall diameter

Approx. weight of cable

Maximum DC resistance of the conductor

mm2

mm

kg/km

Ω/km

Cu

Al

20℃ Cu

20℃ Al

1×10 CC

11.8

283.2

222.8

1.83

13.08

1×16 CC

12.8

356.3

257.3

1.15

1.91

1×25 CC

14.4

481.1

326.4

0.727

1.2

1×35 CC

15.4

595.4

378.8

0.524

0.868

1×50 CC

17.2

782.2

472.9

0.387

0.641

1×70 CC

18.8

1002.1

569

0.268

0.443

1×95 CC

20.7

1285

697.2

0.193

0.32

1×120 CC

22.2

1548

805.6

0.153

0.253

1×150 CC

24.1

1879.8

951.7

0.124

0.206

1×185 CC

26.2

2264.9

1120.3

0.0991

0.164

1×240 CC

28.9

2853.8

1369

0.0754

0.125

1×300 CC

31.6

3493.6

1637.5

0.0601

0.1

1×400 CC

35.2

4530.9

2056.1

0.047

0.0778

1×500 CC

40.2

5966.8

2873.3

0.0366

0.0605

1×630 CC

45.2

7302.1

3404.3

0.0283

0.0469

2×1.5 RE

12

217.7

–

12.1

–

2×2.5 RE

12.8

254.4

223.3

7.41

12.1

2×4 RE

14.5

331.3

281.5

4.61

7.41

2×6 RE

15.5

397.5

322.9

3.08

4.61

2×10 CC

17.6

548.1

423.7

1.83

3.08

2×16 CC

19.6

704.2

505.3

1.15

1.91

2×25 CC

22.8

954.8

643.9

0.727

1.2

2×35 CC

24.8

1184.3

749

0.524

0.868

2×50 SM

22.6

1405.6

783.8

0.387

0.641

2×70 SM

25.1

1842.1

971.5

0.268

0.443

2×95 SM

30.1

2707.3

1525.9

0.193

0.32

2×120 SM

32.3

3252.4

1760.1

0.153

0.253

2×150 SM

35.5

3959.1

2093.7

0.124

0.206

2×185 SM

38.8

4767.3

2466.7

0.0991

0.164

2×240 SM

43.8

6103.7

3119.1

0.0754

0.125

2×300 SM

48.3

7453.4

3722.7

0.0601

0.1
