Three Core LSZH Low Smoke Zero Halogen Cable With Copper Conductor 600V Voltage

Three core Low Smoke Zero Halogen Cable Copper Conductor For 600V Voltage

Application

Low smoke zero halogen cables are becoming more popular in military applications, aircraft, railway and maritime. This is because in these areas it is often difficult to ventilate in the event of a fire..

Besides, Low smoke halogen free material is also widely used in high pressure underground tunnels or track marking lines in railway system. when using them, reduces the possibility of harmful gases accumulating in the event of a fire. In case of fire, LSZH cable jacket helps protect personnel from flames, smoke and noxious gases emitted.

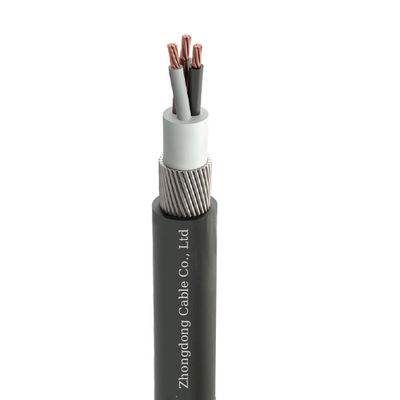

Construction

1. Conductor:Circular, solid, compacted or sector shaped stranded Copper
2. Insulation: XLPE
3. Filler:Non-hygroscopic material
4. Binder tape:: Non-hygroscopic material
5. Amouring  steel wire
6. Sheath: PVC

Advantage

1. Free of halogens: Low Smoke Zero Halogen cables are made with environmentally friendly insulation, coating and special materials. This means that it not only has good electrical and physical-mechanical properties, but also avoid secondary pollution by toxic combustion gases.
2. Low smoke emission and low toxicity: This type of cable uses special new sheathing materials. So, no toxic gases are produced during its production and use and it does not pollute the environment. The use of low-smoke, zero-halogen cables is essential in areas with special needs and where there is a high concentration of people.
3. Environmentally friendly: LSZH cable insulation and sheath do not contain heavy metals harmful to human, like lead and cadmium. And the cable is disposed of without contaminating the soil or water. It is more environmentally friendly than conventional cables. So, also known as green cable.
4. High flame retardancy: Green cables can meet the high fire requirements of buildings. The LSZH wires and cables are not easily combustible and prevent the spread of fire and the spread of disasters.. Especially in high-rise buildings, the use of LSZH cables can increase the rescue time and reduce the danger of harmful gases to people.
