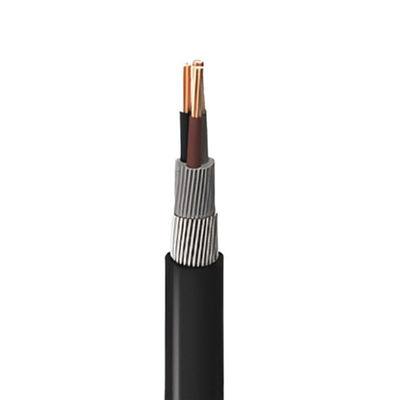

Armored Copper Low Smoke Zero Halogen SWA 0.6/1 KV 3*4mm

Application

Low Smoke Zero Halogen (LSZH) cables are a reliable and high-performance solution for applications demanding superior safety, environmental protection, and compliance with stringent standards. Their low smoke emission, zero halogen properties, and flame-retardant characteristics make them ideal for public buildings, transportation infrastructure, industrial facilities, high-rise buildings, and data centers, ensuring safe and efficient power distribution in critical environments.Common uses include:Public Buildings,Transportation Infrastructure,Industrial Facilities,High-Rise Buildings,Data Centers and Telecommunications,Outdoor and Underground Installations.

Characteristics

Voltage Rating: Uo/U 0.6/1kV
Temperature Rating:Fixed intallation: -20°C to +90°C

Minimum Bending Radius: 1.5mm2 to 16mm2 - Fixed: 6 x overall diameter

                                               25mm2 and above - Fixed: 8 x overall diameter

Construction

Conductor :Class 2 stranded copper conductor
Insulation :XLPE (Cross-Linked Polyethylene)
Bedding :LSZH (Low Smoke Zero Halogen)
Armour :SWA (Steel Wire Armour)
Sheath :LSZH (Low Smoke Zero Halogen)

Advantages

Enhanced Safety: Low smoke and zero halogen properties ensure safer evacuation and rescue during fire incidents.

Environmental Protection: Halogen-free materials reduce environmental and health risks.

Compliance: Meets international safety and environmental standards (e.g., IEC, BS, EN).

Versatility: Suitable for a wide range of indoor and outdoor applications.

Standards

International: IEC 60502-2, IEC 60228

China: GB/T 12706.2-2008

Other standards such as BS,DIN and ICEA upon request
