Weather Resistant Aerial Bundled Cable ABC Aluminum Conductor Power Cable

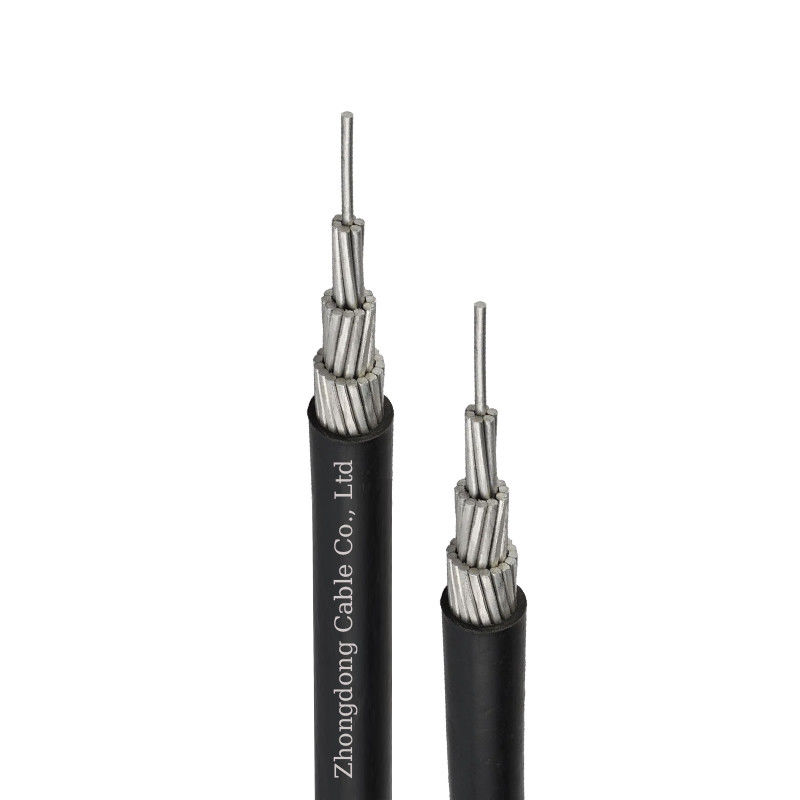

Large Image : Weather Resistant Aerial Bundled Cable ABC Aluminum Conductor Power Cable

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CCC,ISO,TUV,CE
Model Number:	ABC

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum/ Steel Drum
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

Weather Resistant Aerial Bundled Cable ABC Aluminum Conductor Power Cable

Description

Installation Method:	Overhead	Third Party Inspection:	Accepted
Other Name:	PE Or XLPE Insulation	Temperature Range:	-20℃~+70℃
Cores:	Multicores	Sectional Area:	10~1500mm2
Highlight:	Weather Resistant Aerial Bundled Cable ABC , ABC Aluminum Conductor Power Cable

Weather Resistant Aerial Bundled Cable ABC Aluminum Conductor Power Cable And Wire

Applicatiom

Aerial Bundled Cable(overhead cables)is applied for elelctric power distribution in low voltage metropolitan,suburban and rural networks,for public lighting and house connections.Laid on pillars and house fronts

Characteristics

1.Temperature Rating:-20ºC up to +90ºC
2.Voltage Rating:600/1000V
3.Min inner bending radius:
Up to 25mm:4x overall diameter
Above 25mm:6x over diameter
4.Behaviour in fire: Flame retardant cable acc.to IEC60332-1

Construction

1.Conductor: Stranded Aluminium wire conductor
2.Insulation:XLPE (cross-linked polyethylene)or PE (weather resistant)

3.Insulation Color: Black

Specification

No.of cores x Nominal section area	Nominal Construction of conductor	Nominal Insulation thickness	Nominal Overall diameter	Nominal Cable weight	Max.Resistance of conductor at 20ºC
No.X mm²	No.X mm	mm	mm	kg/km	<=(Ω/km)
Aerial Bundled Cables (Overhead Cables) 0.6/1kV
16	7/1.70	1.2	7.2	66	1.910
25	7/2.14	1.2	8.4	94	1.200
35	7/2.52	1.4	9.8	130	0.868
50	19/1.78	1.4	11.1	175	0.641
70	19/2.14	1.4	12.8	235	0.443
95	19/2.52	1.6	14.8	317	0.320
120	37/2.03	1.6	16.2	390	0.253
150	37/2.25	1.8	18.2	486	0.206
2X16	2X7/1.70	1.2	7.2	132	1.910
2X25	2X7/2.14	1.2	8.4	188	1.200
2X35	2X7/2.52	1.4	9.8	260	0.868
2X50	2X19/1.78	1.4	11.1	350	0.641
2X70	2X19/2.14	1.4	12.8	470	0.443
2X95	2X19/2.52	1.6	14.8	634	0.320
2X120	2X37/2.03	1.6	16.2	780	0.253
2X150	2X37/2.25	1.8	18.2	972	0.206
4X16	4X7/1.70	1.2	7.2	264	1.910
4X25	4X7/2.14	1.2	8.4	376	1.200
4X35	4X7/2.52	1.4	9.8	520	0.868
4X50	4X19/1.78	1.4	11.1	700	0.641
4X70	4X19/2.14	1.4	12.8	940	0.443
4X95	4X19/2.52	1.6	14.8	1268	0.320
4X120	4X37/2.03	1.6	16.2	1560	0.253
4X150	4X37/2.25	1.8	18.2	1944	0.206
