Medium Voltage Low Smoke Zero Halogen Power Cable 18/30 36kV 19/33 36 KV 3 Core

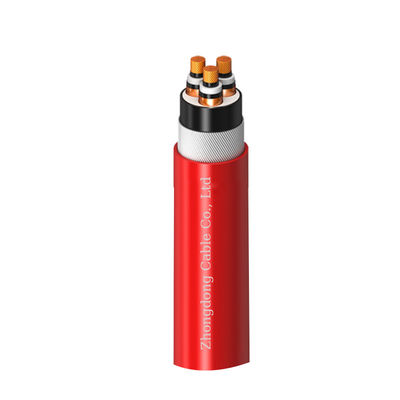

Large Image : Medium Voltage Low Smoke Zero Halogen Power Cable 18/30 36kV 19/33 36 KV 3 Core

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CE,TUV,ISO,VED
Model Number:	WDZA-YJY23

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	wooden drum
Delivery Time:	10work days
Payment Terms:	L/C,T/T
Supply Ability:	100KM/Week

Contact Now

Medium Voltage Low Smoke Zero Halogen Power Cable 18/30 36kV 19/33 36 KV 3 Core

Description

Conductor Material:	Copper	Insulation Material:	Xlpe
Jacket:	PVC	Type:	LOW VOLTAGE
High Temperature:	90 °C	Core:	1 Core, 2 Core,3 Core,4 Core,5 Core
Highlight:	3 Core Low Smoke Zero Halogen Power Cable , Medium Voltage Lszh Power Cable , 36 KV Lszh Power Cable

Medium Voltage Low Smoke Zero Halogen Cable 18/30 36kV 19/33 36 KV 3 Core

Application

‌Industrial Automation & Process Control‌:
‌Hazardous Environments‌
‌Public Infrastructure‌
‌Building Management Systems‌
‌Transportation Networks‌
Renewable Energy‌

Characteristics

‌LSZH sheathing‌ resists flame spread and reduces smoke density.
‌Copper/aluminum shielding‌ ensures signal accuracy in noisy environments.
Halogen-free construction aligns with ‌IEC 60092‌, ‌IEEE 802.3‌, and ‌RoHS standards‌.

Construction

Conductor :Class 2 stranded copper conductor

Insulation :XLPE (Cross-Linked Polyethylene)

Bedding :LSZH (Low Smoke Zero Halogen)

Armour :SWA (Steel Wire Armour)

Sheath :LSZH (Low Smoke Zero Halogen)

Specification

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC	Armored wire diameter (mm)	Sheath thickness (mm)	Outer diameter (approoximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)			bedding thickness (mm)
50	Compact round	8.4	8	0.1	1.8	3.15	3.5	77.3	9333	8390
70	Compact round	10	8	0.1	1.8	3.15	3.6	80.9	10396	9075
95	Compact round	11.7	8	0.1	1.9	3.15	3.7	85	11723	9930
120	Compact round	13.1	8	0.1	2	3.15	3.8	88.4	12986	10720
150	Compact round	14.6	8	0.1	2	3.15	3.9	91.8	14220	11388
185	Compact round	16.3	8	0.1	2.1	3.15	4	95.9	15887	12395
240	Compact round	18.5	8	0.1	2.2	3.15	4.2	101.2	18144	13613
300	Compact round	20.7	8	0.1	2.3	3.15	4.4	107	20761	15097
400	Compact round	23.8	8	0.1	2.4	3.15	4.6	114.3	24824	17273
500	Compact round	26.6	8	0.1	2.5	3.15	4.8	122.2	29019	19580
