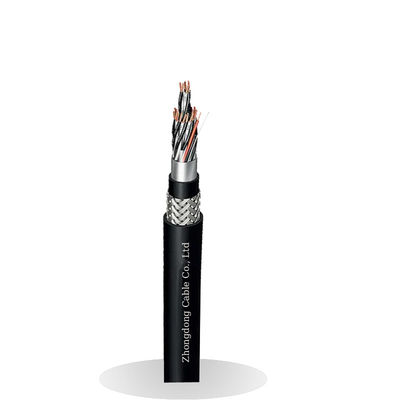

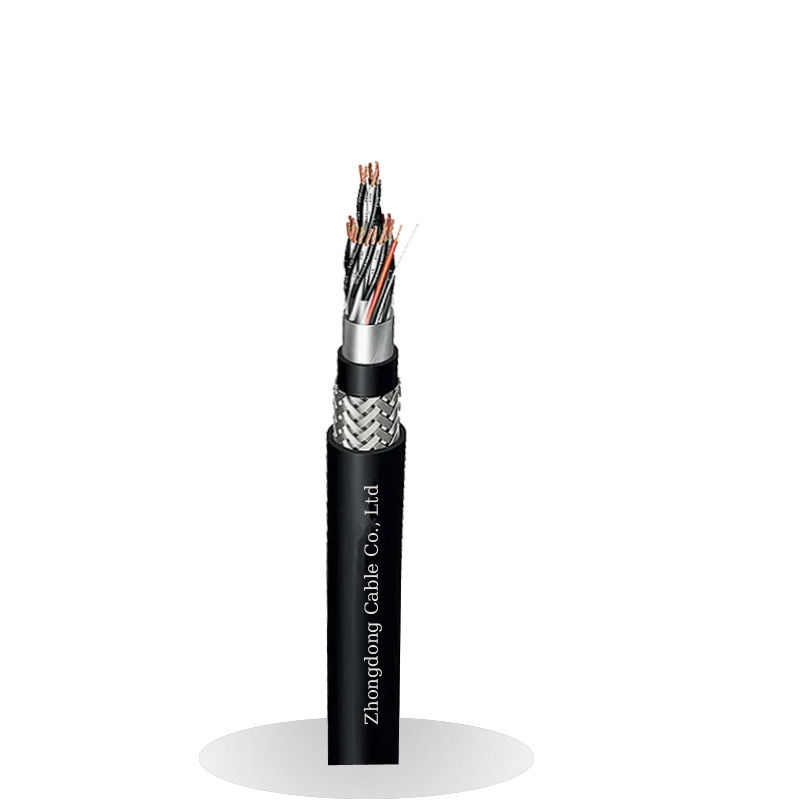

Steel Wire Braided Shielded Instrument Cable 300V Armoured Cu XLPE Swb PVC

Steel Wire Braided Shielded Instrument Cable 300V Armoured Cu XLPE Swb PVC
Steel Wire Braided Shielded Instrument Cable 300V Armoured Cu XLPE Swb PVC

Large Image :  Steel Wire Braided Shielded Instrument Cable 300V Armoured Cu XLPE Swb PVC

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: IEC,CE,ISO
Model Number: Shielded Instrument Cable
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden drums
Delivery Time: 10Days
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Contact Now

Steel Wire Braided Shielded Instrument Cable 300V Armoured Cu XLPE Swb PVC

Description
Conductor: Copper Insulation: XLPE
Drain Wire: Tinned Copper Voltage Rating: 300V
Outer Sheath Colour: Black,Blue Temperature: Fixed -40°C To +80°C
Highlight:

Steel Wire Braided Shielded Instrument Cable

,

Shielded Instrument Cable 300V

Steel Wire Braided Shielded Instrument Cable Armoured Cu/XLPE/Swb/PVC



Application

This product applies for connecting wire of electric appliance, apparatus or computer, used in distribution equipment with rated with rated voltage up to and including A.c.300/500V or D.C.1000V



Parameter

Voltage Rating :300V
Operating Temperature :Fixed: -40°C to +80°C  Flexed: 0°C to +50°C

Minimum internal bending radius 6*cable Diameter

Conductor :0.5mm² - 0.75mm²:  Copper   1mm² and above:  Copper





Construction

Insulation :XLPE
Collective Screen :Al/PET (Aluminium/Polyester Tape)
Drain Wire :Tinned copper
Sheath :LSZH (Low Smoke Zero Halogen) - UV Resistan







Type Option



No. Optional Type Instrumenation Cable Description
1 DJYVPR Instrumenation soft cable with Cu core, PE insulation, PVC sheath, copper wire braided overall shielding
2 DJYPVP Instrumenation cable with Cu core, PE insulation, PVC sheath, copper wire braided individual & overall shielding
3 DJYPVPR Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, copper wire braided individual & overall shielding
4 DJYVP2R Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, copper tape wrapping overall shielding
5 DJYP2VR Instrumenation cable with flexible Cu core, PE insulation, PVC sheath,copper tape wrapping individual shielding
6 DJYP2VP2R Instrumenation cable with flexible Cu core, PE insulation, PVC sheath,copper tape wrapping individual & overall shielding
7 DJYVP3R Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping overall shielding
8 DJYP3VR Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping indivadual shielding
9 DJYP3VP3 Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping indivadual & overall shielding
10 DJYP3VP3R Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping indivadual & overall shielding
