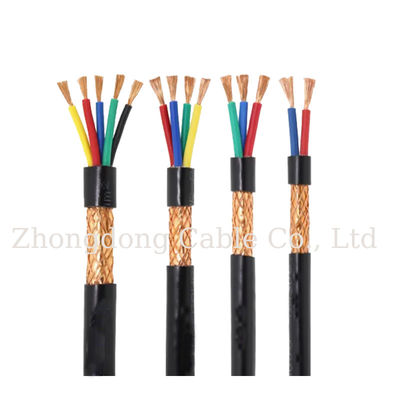

450/750V Copper Conductor Copper Shielded  Instrument Cable Twisted Pair Cable

Application

This product applies for connecting wire of electric appliance, apparatus or computer, used in distribution equipment with rated with rated voltage up to and including A.c.300/500V or D.C.1000V

Construction

Insulation :XLPE
Collective Screen :Al/PET (Aluminium/Polyester Tape)
Drain Wire :Tinned copper
Sheath :LSZH (Low Smoke Zero Halogen) - UV Resistan

Operating characteristic

More than 80% of relative humidity in fixed installation or mobile use, cable core temperature than: fluorine plastic insulation 200ºC, silicone rubber insulating 180ºC,90ºCcross linking together, other polyethylene insulation insulation 70ºC, in use process cable.should prevent heat radiation or contact directly.

The temperature for installation shall not be below 0ºC.

Permissible bending radius :not less than 6 times of overall diameter for unarmored cable not less than 12 time of overall diameter for armored or screened cable ; not less than 6 times of overall diameter for screened flexible cable.


Type Option
