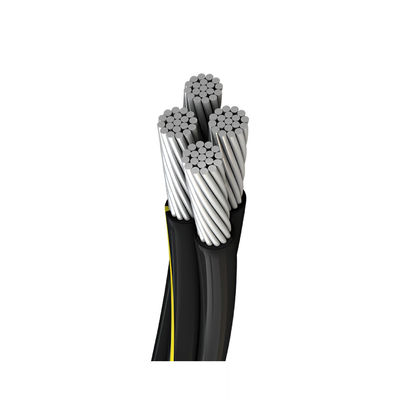

Aluminum Aerial Bundled Cable ABC 4 Cores Low Voltage Overhead Electrical Wire

Large Image : Aluminum Aerial Bundled Cable ABC 4 Cores Low Voltage Overhead Electrical Wire

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CE,ISO,TUV,VDE
Model Number:	ABC

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum/ Steel Drum
Delivery Time:	10Days
Payment Terms:	L/C,T/T
Supply Ability:	100KM/WEEK

Contact Now

Aluminum Aerial Bundled Cable ABC 4 Cores Low Voltage Overhead Electrical Wire

Description

Conductor Material:	Aluminum	Insulation Material:	Xlpe
Product Name:	4x16 4x25 4x35 4x50 4x70 4x95	Rated Voltage:	0.6/1KV
Working Temperature:	90°C, 70°C	Application:	Overhead Aerial
Highlight:	Low Voltage Overhead Electrical Wire , Aerial Bundled Cable ABC 4 Cores , Aluminum ABC Cable 4 Cores

ABC Aluminum Aerial Bundled Cable 4 Cores Low Voltage Overhead

Applications

Rural electrification (replacing bare conductors for safety)

Urban power lines (reducing installation space and improving reliability)

Storm-prone areas (better resistance to wind and weather than traditional open wiring)

Advantages

Insulated conductors prevent short circuits & improve safety
Lightweight aluminum cores reduce sagging and support longer spans
UV-resistant sheath for durability in outdoor environments
Tangle-free bundled design for easier installation

Construction

Conductor (for either phase, neutral or street lighting):The conductors shall be of aluminium 1350 wires and are compacted.

Insulation:XLPE

Assembly:2 up to 4 cores of equal cross section are stranded together in left-hand lay, additionally 1 or 2 cores of reduced cross section can be co-stranded.

Strandard

BS 7870-5:1999

Parameter

Number of Cores x Nominal Cross Section	Max. Conductor- Resistance	Min. Breaking Load of Conductor Strand	Current Rating in the air	Outer Diameter	Total weight
mm^2	Ω/km	kN	A	mm	kg/km
1x 16 RM	1910	2,5	72	80	74
1x 25 RM	1200	4,0	107	90	106
1x 35 RM	0,868	5,5	132	105	138
1x 50 RM	0,641	8,0	165	118	182
1x 70 RM	0,443	10,7	205	130	252
1x 95 RM	0,320	13,7	240	154	333
1x 120 RM	0,253	18,6	290	170	408
1x 150 RM	0,206	23,2	334	190	502
1x 185 RM	0,164	28,7	389	210	611
1x 240 RM	0,125	37,2	467	240	801
2x 16 RM	1910	2,5	72	156	147
2x 25 RM	1200	4,0	107	180	208
2x 35 RM	0,868	5,5	132	200	277
2x 50 RM	0,641	8,0	165	235	361
2x 70 RM	0,443	10,7	205	254	505
2x 95 RM	0,320	13,7	240	303	666
2x 150 RM	0,206	23,2	334	380	1004
4x 16 RM	1910	2,5	72	188	286
4x 25 RM	1200	4,0	107	212	430
4x 35 RM	0,868	5,5	132	241	553
4x 50 RM	0,641	8,0	165	278	746
4x 70 RM	0,443	10,7	205	318	1009
4x 95 RM	0,320	13,7	240	378	1332
4x 120 RM	0,253	18,6	290	544	1632
