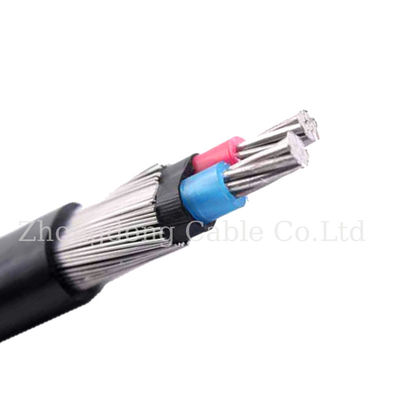

8000 Series Aluminum Ser Service Entrance Cable 2 Core Flat Concentric XLPE SWA PVC

8000 Series Aluminum Alloy Concentric Cable IEC Standard

Core and
Nominal
Cross
Section

Conductor

Insulation
Thickness

Concentric

Conductor

Thickness of
Cable Shield

Overall
Diameter

Weight
of cable

Max DC resistance of
     conductor  (20℃)

mm2

Number

Diameter
mm

mm

Number

Diameter
mm

mm

mm

kg/km

Ω/km
(Phase)

Ω/km
(Concentric)

Copper conductor(IEC standard)

2X10

7

1.35

1.55

20

0.85

1.40

11.80

290

1.83

1.90

2X16

7

1.70

1.55

32

0.85

1.40

12.84

420

1.15

1.20

2X25

7

2.14

1.60

29

1.13

1.50

15.02

630

0.727

0.76

2X35

19

1.53

1.65

27

1.35

1.60

17.00

832

0.524

0.55

Aluminum alloy conductor (IEC standard)

2X10

7

1.35

1.55

23

1.13

1.40

12.41

192

3.08

1.335

2X16

7

1.70

1.55

26

1.13

1.40

13.46

230

1.91

1.808

2X25

7

2.14

1.6

29

1.13

1.50

15.08

290

1.20

1.0586
