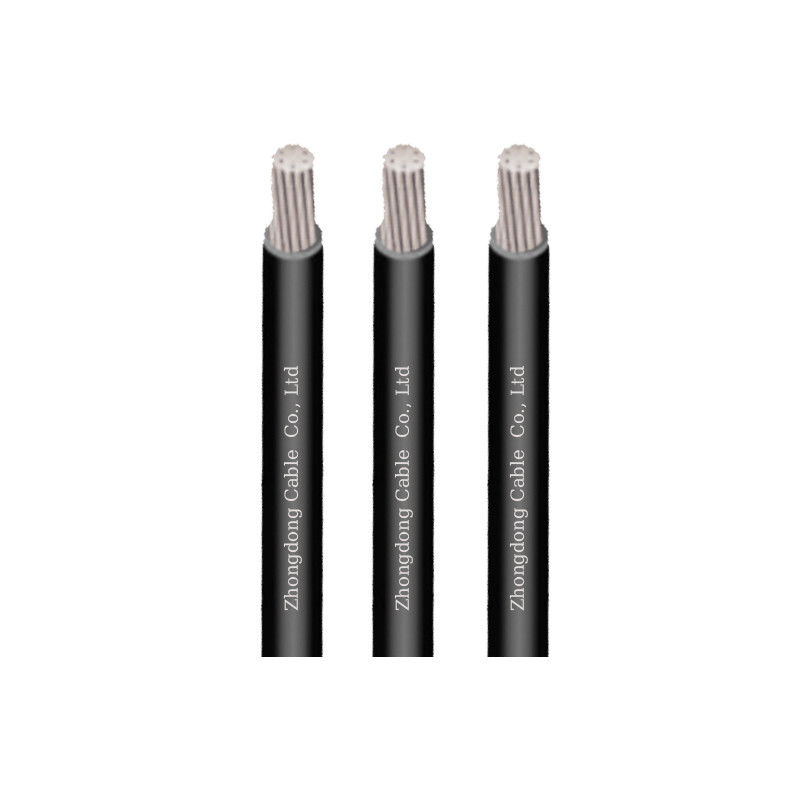

8000 Series Aluminium Conductor Cable Al Alloy Concentric Cable 2X8awg 3X8awg

8000 Series Aluminium Conductor Cable Al Alloy Concentric Cable 2X8awg 3X8awg
8000 Series Aluminium Conductor Cable Al Alloy Concentric Cable 2X8awg 3X8awg

Large Image :  8000 Series Aluminium Conductor Cable Al Alloy Concentric Cable 2X8awg 3X8awg

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: IEC,CE,CCC,ISO
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 7-30 days based on different Qty
Payment Terms: ,L/C,T/T
Supply Ability: 100KM/Week
Contact Now

8000 Series Aluminium Conductor Cable Al Alloy Concentric Cable 2X8awg 3X8awg

Description
Conductor: Aluminium Alloy Voltage: 600V
Series: 8000 Insultion: XLPE
Sheath: PVC, XLPE, PE Wire Gauge: 2X12, 2X10, 2X8, 2X6, 2X4, 3X8, 3X6, 3X4, 3X2
Highlight:

8000 Series Aluminium Conductor Cable

,

Aluminium Conductor Concentric Cable 2X8awg

8000 Series Aluminium Conductor Cable Al Alloy Concentric Cable 2X8awg 2X10awg





Application



The 8000 series aluminum alloy concentric cable is used in electric service entrance from the power distribution network to the meter pannel(especially where it is required to prevent electricity theft), and as feeder cable from the meter pannel to the distribution pannel.This cable an be used in dry and wet places, outdoors or directly buried.It has a maximum operating temperature of 90ºC and rated voltage of 600V&below.

.





Construction



  1. Phase conductor: Aluminum alloy conductor 8000 series
  2. Insulation :XLPE
  3. Neutral conductor :Aluminum alloy conductor 8000 series
  4. Binder tape :Non-hygroscopic tape
  5. Sheathed:PVC (XLPE/PE) sheath





Specification



Core and
Nominal Cross Section

Conductor

Insulation
 Thickness

Concentric conductor

Thickness
of cable shield

Overall
Diameter

Cable
Weight

Max DC resistance of conductor (20℃)

Wire gauge

Number

Diameter mm

mm

Number

Diameter mm

mm

mm

kg/km

Ω/km (Phase)

Ω/km (Concentric)

Aluminum alloy conductor

2X #12

7

0.78

1.14

39

0.321

1.14

7.74

67

8.88

8.90

2X #10

7

0.98

1.14

25

0.511

1.14

8.72

85

5.59

5.60

2X #8

7

1.23

1.14

25

0.643

1.14

9.74

110

3.52

3.60

2X #6

7

1.55

1.14

25

0.813

1.14

11.04

148

2.21

2.30

2X #4

7

1.96

1.14

26

1.020

1.14

12.68

206

1.39

1.40

3X #8

7

1.23

1.14

65

0.405

1.14

11.3X17.3

262

3.52

3.60

3X #6

7

1.55

1.14

65

0.511

1.52

13.2X20.2

370

2.21

2.30

3X #4

7

1.96

1.14

65

0.643

1.52

14.7X22.9

488

1.39

1.40

3X #2

7

2.47

1.14

65

0.823

1.52

16.6X26.3

640

0.88

0.89
