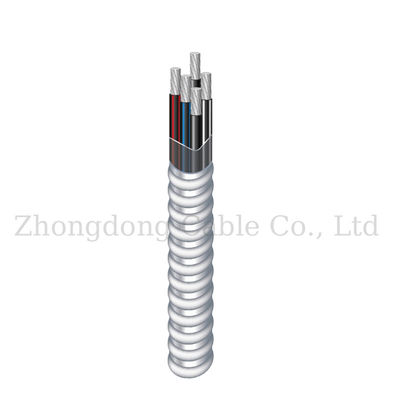

XHWW-2 Aluminum Conductor MC Cable 3 Core 4 Core 600V Aluminum Wire

Conductor
Count

Ground

Insulation
Thickness

Armor
Thickness

Sheath
Thickness

Approximate
Diameter over
Armor

Approximate
Diameter over
Sheath

AWG

AWG

mm

mm

mm

mm

mm

3 conductors with a bare ground

6

6

1.14

065

1.27

22.3

24.8

4

6

1.14

0.65

1.27

25.0

27.5

2

6

1.14

065

1.27

28.4

30.9

1

4

1.4

0.65

1.27

31.6

34.1

1/00

4

1.4

0.65

1.27

33.9

36.4

2/00

4

1.4

065

1.27

36.4

38.9

3/00

4

1.4

0.65

1.27

39.2

41.7

4/00

2

1.4

065

1.52

42.4

45.4

250

2

1.65

0.75

1.52

46.5

49.5

300

2

1.65

0.75

1.52

49.5

52.5

350

2

1.65

075

1.52

52.3

55.3

400

1

1.65

075

1.52

55.0

58.0

500

1

1.65

075

1.52

59.7

62.7

600

1

2.03

0.75

1.91

66.3

70.1

700

1/00

2.03

075

1.91

70.3

74.1

750

1/00

2.03

0.75

1.91

72.2

76.0

1000

1/00

2.03

0.75

1.91

81.5

85.3

4 conductors with a bare ground

6

6

1.14

0.65

1.27

24.2

26.7

4

6

1.14

0.65

1.27

27.3

29.8

2

6

1.14

0.65

1.27

31.1

33.6

1

4

1.4

0.65

1.27

34.6

37.1

1/00

4

1.4

0.65

1.27

37.2

39.7

2/00

4

1.4

0.65

1.27

39.9

424

3/00

4

1.4

0.75

1.52

43.1

46.1

4/00

2

1.4

0.75

1.52

46.7

49.7

250

1

1.65

0.75

1.52

51.2

54.2

300

1

1.65

0.75

1.52

54.7

57.7

350

1/00

1.65

0.75

1.52

57.8

60.8

400

1/00

1.65

0.75

1.52

60.8

63.8

500

2/00

1.65

0.75

1.91

66.0

69.8

600

2/00

2.03

0.75

1.91

73.5

77.3

700

2/00

2.03

0.75

1.91

77.9

81.7

750

3/00

2.03

0.75

1.91

80.0

83.8
