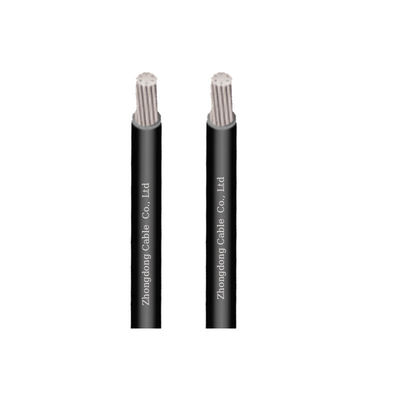

6 8 10 Gauge AWG Size Aluminum Conductor Power Cable AA8000 XLPE Insulation XHHW XHHW-2

6 8 10 Gauge AWG Size Aluminum Conductor Power Cable AA8000 XLPE Insulation XHHW XHHW-2
6 8 10 Gauge AWG Size Aluminum Conductor Power Cable AA8000 XLPE Insulation XHHW XHHW-2

Large Image :  6 8 10 Gauge AWG Size Aluminum Conductor Power Cable AA8000 XLPE Insulation XHHW XHHW-2

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: IEC,CE,CCC,ISO
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 7-30 days based on different Qty
Payment Terms: ,L/C,T/T
Supply Ability: 100KM/Week
Contact Now

6 8 10 Gauge AWG Size Aluminum Conductor Power Cable AA8000 XLPE Insulation XHHW XHHW-2

Description
Conductor: Aluminium Alloy Voltage: 600V
Number Of Core: Single Insultion: XLPE
Sheath: PVC, XLPE, PE Wire Gauge: 6AWG-1AWG
Highlight:

Aluminum Conductor Power Cable XLPE Insulation

,

10 Gauge Aluminum Conductor Power Cable

6 8 10 Gauge AWG Size Aluminum Conductor Cable AA8000 XLPE Insulation XHHW XHHW-2





Application



XHHW-2 is primarily used in house construction, conduit, or recognized raceways for services, feeders, and branch circuit wiring in wet or dry locations, at  temperatures not to exceed 90°C. Voltage rating is 600V. This product is designed to be installed without the application of pulling lubricant.

.



Construction



  1. Conductor: Aluminum Alloy
  2. Insulation: 120℃ XLPE/XLPO
  3. Jacket: XLPE, PVC, PE





Electrical properties



Size

Stranding

Conductor Diameter

Insulation Thickness

Overall Diameter

Weight

Ampacity at 90C *

AWG



(inches)

(inches)

(inches)

LBS/1000'



8

7

0.134

0.045

0.227

30

45

6

7

0.169

0.045

0.262

42

60

4

7

0.213

0.045

0.306

68

75

2

7

0.268

0.045

0.361

86

100

1

7

0.299

0.550

0.412

110

115

1/0

18

0.335

0.550

0.449

134

135

2/0

18

0.378

0.550

0.489

163

150

3/0

18

0.423

0.550

0.536

200

175

4/0

18

0.476

0.550

0.588

247

205

250

35

0.520

0.650

0.653

296

230

300

35

0.571

0.650

0.703

359

255

350

35

0.614

0.650

0.749

401

280

400

35

0.657

0.650

0.792

453

305

500

35

0.736

0.650

0.869

556

350

600

58

0.816

0.800

0.979

679

385

700

58

0.877

0.800

1.040

782

420

750

58

0.909

0.800

1.071

833

435

900

58

0.999

0.800

1.162

987

480

1000

58

1.059

0.800

1.223

1090

500
