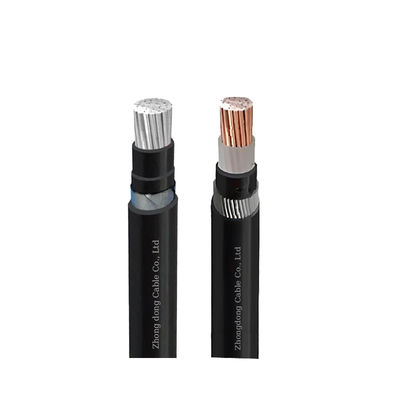

1 Core 3 Core Steel Wire Armoured Cable 6-35kV MV Medium Voltage Power Cable

1 Core 3 Core Steel Wire Armoured Cable 6-35kV MV Medium Voltage Power Cable
1 Core 3 Core Steel Wire Armoured Cable 6-35kV MV Medium Voltage Power Cable

Large Image :  1 Core 3 Core Steel Wire Armoured Cable 6-35kV MV Medium Voltage Power Cable

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: IEC,CE,CCC,ISO
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 7-30 days based on different Qty
Payment Terms: ,L/C,T/T
Supply Ability: 100KM/Week
Contact Now

1 Core 3 Core Steel Wire Armoured Cable 6-35kV MV Medium Voltage Power Cable

Description
Application: Underground Armour: Steel Wire
Insulation: XLPE Item No: NYR2Y NAYR2Y
Sheath: PVC Conductor: Copper Or Alumium
Highlight:

Armoured Medium Voltage Power Cable

,

MV Steel Wire Armoured Cable

,

1 Core Steel Wire Armoured Cable

Medium Voltage 6-35kV Armoured Electrical Cable 1 Core 3 Core



Application

Medium voltage Armoured power cable for static application in ground, within and outside facilities, outdoor, in cable canals,in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain..



Construction

  1. Conductor:Circular, solid, compacted or sector shaped stranded Copper or aluminum
  2. Insulation:XLPE PE or PVC
  3. Filler: Non-hygroscopic material
  4. Inner sheath: PVC
  5. Armouring: Steel Tape Armoured
  6. Outer Sheath PVC, XLPE, PVC



Technical data:



  1. Test Voltage: 3.5kV 5min No Breakdown
  2. The ambient temperature for installation: ≥0℃.
  3. Maximum conductor temperature in normal operation:≤90℃.
  4. Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃.
  5. Permissible minimum bending radius:
  6. Single unarmoured cable: 20 x OD
  7. Multi-core unarmoured cable: 15 x OD
  8. Single armoured cable: 5 x OD
  9. Multi-core armoured cable: 12 x OD
  10. Note : OD=Overall Diameter of Cable



Product Type





General type

VDE type

Description

Application

CU/XLPE/PVC (AL/XLPE/PVC)

N2XSY N2XSEY (NA2XSY NA2XSEY)

Cu conductor(Al conductor)XLPE insulated PVC sheathed power cable

Laying indoors, in tunnel, fixed on the bracket, pipe and buried in the soil, the cable cannot bear external mechanical forces.

CU/XLPE/PE (AL/XLPE/PE)

N2XS2Y N2XSE2Y (NA2XS2Y NA2XSE2Y)

Cu conductor(Al conductor)XLPE insulated PE sheathed power cable

CU/XLPE/STA/PVC (AL/XLPE/STA/PVC)

N2XSBY N2XSEBY (NA2XSBY NA2XSEBY)

Cu conductor(Al conductor)XLPE insulated double of steel-tape armored PVC sheathed power cable

For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force.

CU/XLPE/STA/PE (AL/XLPE/STA/PE)

N2XSB2Y N2XSEB2Y (NA2XSB2Y NA2XSEB2Y)

Cu conductor(Al conductor)XLPE insulated double of steel-tape armored PE sheathed power cable

CU/XLPE/ATA/PVC (AL/XLPE/ATA/PVC)

N2XSBY N2XSEBY (NA2XSBY NA2XSEBY)

Cu conductor(Al conductor)XLPE insulated double of aluminium-tape armored PVC sheathed power cable

CU/XLPE/SWA/PVC (AL/XLPE/SWA/PVC)

N2XSRY N2XSERY (NA2XSRY NA2XSERY)

Cu conductor(Al conductor)XLPE insulated steel-wire armored PVC sheathed power cable

For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force

CU/XLPE/SWA/PE (AL/XLPE/SWA/PE)

N2XSR2Y N2XSER2Y (NA2XSR2Y NA2XSER2Y)

Cu conductor(Al conductor)XLPE insulated steel-wire armored PE sheathed power cable

CU/XLPE/AWA/PVC (AL/XLPE/AWA/PVC)

N2XSRY N2XSERY (NA2XSRY NA2XSERY)

Cu conductor(Al conductor)XLPE insulated aluminium-wire armored PE sheathed power cable



Range of Products



No.of cores

6/6(7.2)  6/10(12.0)

8.7/10(12) 8.7/15(17.5)

12/20(24.0)

18/30(36.0)

21/35(40.5)

26/35(40.5)

1

25-630

25-630

25-630

25-630

50-630

50-630

25-630

25-630

25-630

25-630

50-630

50-630

25-630

25-630

25-630

25-630

50-630

50-630

25-630

25-630

25-630

25-630

50-630

50-630

25-630

25-630

25-630

25-630

50-630

50-630

25-630

25-630

25-630

25-630

50-630

50-630

3

16-630

16-630

16-630

16-630

50-400

50-400

16-630

16-630

16-630

16-630

50-400

50-400

16-630

16-630

16-630

16-630

50-400

50-400

16-630

16-630

16-630

16-630

50-400

50-400

16-630

16-630

16-630

16-630

50-400

50-400

16-630

16-630

16-630

16-630

50-400

50-400
