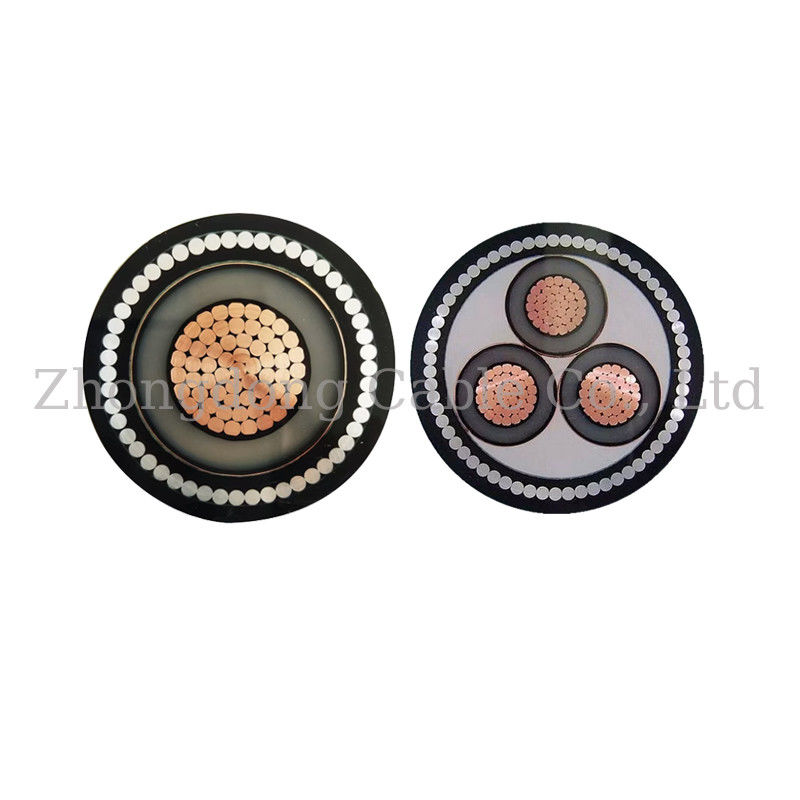

Copper XLPE Insulated SWA Armoured Power Cable MV Outdoor LSZH Cable

Copper XLPE Insulated SWA Armoured Electrical Cable MV Outdoor LSZH Cable

Application

LSZH Medium Voltage cable with aluminium conductors offering a lightweight alternative to copper conductor alternatives. Suitable for use in conduit and for fixed, protected installation. For installations where fire, smoke emission and toxic fume create a potential risk to life and equipment.

Characteristics

1. Rated power-frepuency voltage U0/U: 3.6/6kv~26/35kv.
2. Max.admissible operating temperature of the conductor:90ºC
3. Max. short-circurt temperature of conductor shall not exceed 250ºC. (5s maximum duration)
4. The ambient temperature under installation should not below 0ºC
5.  The bending radius of a single-core cable should not less than 20 times of the cable diameter.
6. The bending radius of a multi-core cable should not less than 15 times of the cable diameter.

Construction

1. Conductor :Class 2 stranded copper conductor
2. Insulation :XLPE (Cross-Linked Polyethylene)
3. Bedding :LSZH (Low Smoke Zero Halogen)
4. Armour :SWA (Steel Wire Armour)
5. Sheath :LSZH (Low Smoke Zero Halogen)

Specification
