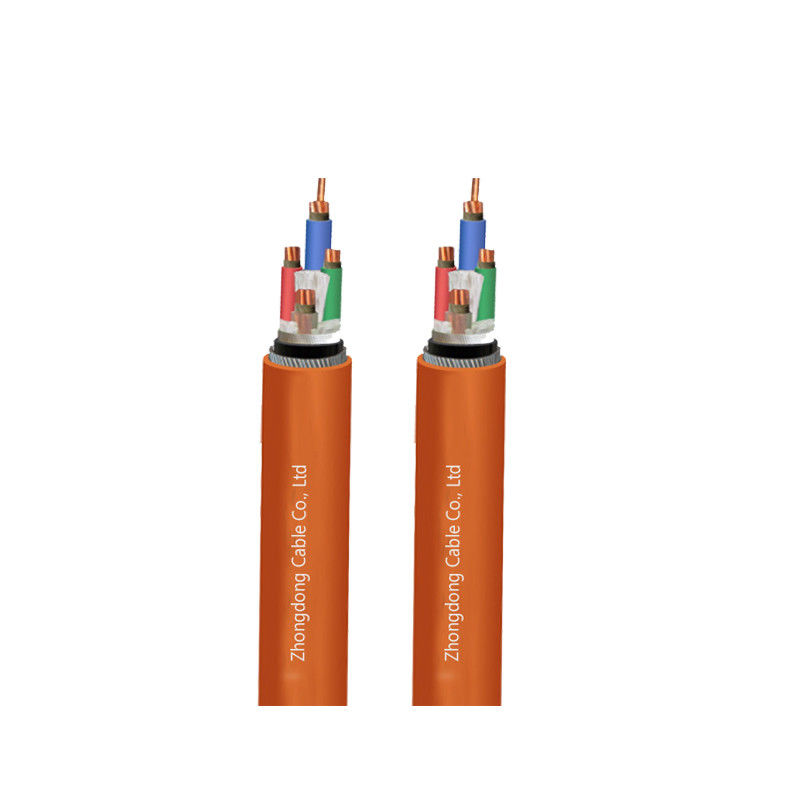

Flame Retardant Low Smoke Zero Halogen Cable 0.6KV 1kV XLPE Insulated YJY23

Flame Retardant Low Smoke Zero Halogen Cable 0.6KV 1kV XLPE Insulated YJY23
Flame Retardant Low Smoke Zero Halogen Cable 0.6KV 1kV XLPE Insulated YJY23

Large Image :  Flame Retardant Low Smoke Zero Halogen Cable 0.6KV 1kV XLPE Insulated YJY23

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: IEC,CE,ISO,TUV
Model Number: NYBY NAYBY
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time: 7-30 days based on different qty
Payment Terms: ,L/C,T/T
Supply Ability: 100KM/Week
Contact Now

Flame Retardant Low Smoke Zero Halogen Cable 0.6KV 1kV XLPE Insulated YJY23

Description
Voltage: 600V, 1000V Insulation: XLPE
Jacket: PVC Feature: LSZH
Amour: Steel Wire Application: Underground, Overhead, Indoor, Mining And Power Distribution Etc
Highlight:

Low Smoke Zero Halogen Cable XLPE Insulated

,

YJY23 Low Smoke Zero Halogen Cable

Flame Retardant Low Smoke Zero Halogen Cable 0.6/1kV  XLPE Insulated YJY23





Application



  1. ‌Industrial Factory
  2. ‌Power Distribution Systems‌
  3. ‌High-Risk Buildings
  4. ‌Transportation Infrastructure‌
  5. ‌Hazardous Environments‌
  6. ‌Emergency Systems

Flame Retardant Low Smoke Zero Halogen Cable 0.6KV 1kV XLPE Insulated YJY23 0Flame Retardant Low Smoke Zero Halogen Cable 0.6KV 1kV XLPE Insulated YJY23 1Flame Retardant Low Smoke Zero Halogen Cable 0.6KV 1kV XLPE Insulated YJY23 2







Construction



  1. Conductor :Class 2 stranded copper conductor
  2. Insulation :XLPE (Cross-Linked Polyethylene)
  3. Bedding :LSZH (Low Smoke Zero Halogen)
  4. Armour :SWA (Steel Wire Armour)
  5. Sheath :LSZH (Low Smoke Zero Halogen)



Advantage



  1. Composite high temperature resistance performance
  2. Compressive and tensile strengthening
  3. LSZH jacket
  4. Anti bending and anti deformation
  5. Electromagnetic and Environmental Adaptability
  6. Low frequency interference shielding
  7. Chemical corrosion protection
  8. Direct burial without conduit
  9. Extended lifespan





Specification



Cross section of conductor(mm²)

Conductor structure

Insulation Thickness(mm)

Copper sheath thickness(mm)

Approx.cable diameter(mm)

Max resistance of conductor at 20℃ (Ω/km)

4×6

1

0.7

1.8

15.7

3.08

4×10

7

0.7

1.8

18.3

1.83

4×16

7

0.7

1.8

20.7

1.15

4×25

7

0.9

1.8

24.6

0.727

4×35

7

0.9

1.8

27.0

0.524

4×50

10

1.0

2.0

30.4

0.387

4×70

14

1.1

2.1

36.7

0.268

4×95

19

1.1

2.3

41.8

0.193

4×120

24

1.2

2.4

46.2

0.153

4×150

30

1.4

2.6

51.9

0.124

4×185

37

1.6

2.7

57.1

0.0991

4×240

48

1.7

3.0

63.8

0.0754

4×300

61

1.8

3.1

69.7

0.0601
