Copper Wire Screen Aerial Bundled Cable ABC 3 Core AL/XLPE/HPDE MV 19Kv 33kV

Large Image : Copper Wire Screen Aerial Bundled Cable ABC 3 Core AL/XLPE/HPDE MV 19Kv 33kV

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CCC,ISO,TUV,CE
Model Number:	ABC

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum/ Steel Drum
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

Copper Wire Screen Aerial Bundled Cable ABC 3 Core AL/XLPE/HPDE MV 19Kv 33kV

Description

Application:	Overhead Distribution Line	Cores Nos:	1,2,3,4 More Multicore
Rated Voltage:	19/33kV	Installation Degree:	-20℃-90℃
Neutral Messengers:	AAC Or ACSR	Insulation:	XLPE/PE/PVC
Highlight:	Copper Wire Screen ABC Cable , MV Aerial Bundled Cable ABC , 33kV Aerial Bundled Cable ABC

Copper wire screen ABC Aerial Bundled Cable 3 Core AL/XLPE/HPDE MV 19/33kV

Applicatiom

Copper-shielded ABC (Aerial Bundled Cables)‌ are primarily used in ‌overhead power distribution systems‌ where reliability, electromagnetic interference (EMI) resistance, and durability are critical.

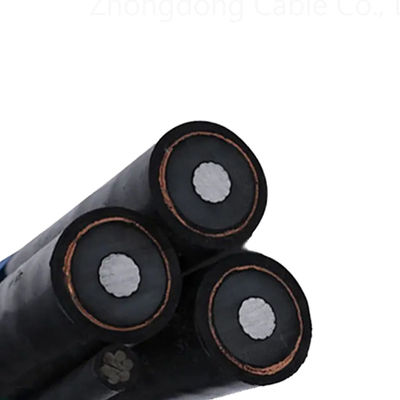

Copper Wire Screen Aerial Bundled Cable ABC 3 Core AL/XLPE/HPDE MV 19Kv 33kV 0

Construction

Phase Conductor: Class 2 Circular compacted stranded aluminum
Conductor Screen: Extruded semi-conductive layer
Insulation: XLPE (Cross-linked polyethylene)
Insulation Screen: Extruded semi-conductive layer
Metallic Screen: Copper wire screen or copper tape screen
Separator: Semi-conductive swellable tape
Outer Sheath: HDPE (High Density polyethylene)

Characteristics

6.35/11kV
Operating Temperature: 90°C XLPE
Temperature Range: -20°C PE sheath
Short Circuit Temperature( 5 seconds maximum duration ): 250°C XLPE
Bending Radius: 15 x overall diameter

Specification

Number of Cores x Nominal Cross Section	Phase Conductor			Messenger Suspension Unit			Continuous current rating at 300°C ambient temp
Number of Cores x Nominal Cross Section	Stranding	Nominal Sectional Area	Maximum Conductor Resistance	Stranding	Nominal Sectional Area	Breaking Load	Continuous current rating at 300°C ambient temp
No.×mm²	No.×mm	mm²	Ω/Km	No.×mm	mm²	kN	A
3X50 + 1X50	19/1.78	50	0.641	7/3.0	50	60	165
3X150+ 1X50	37/2.25	150	0.206	7/3.0	50	60	315
3X185+1X70	37/2.52	185	0.164	7/3.57	70	91	355
3X70 +1X50	19/2.14	7	0.443	7/3.15	50	62	250
3X150 +1X50	37/2.25	150	0.206	7/3.15	50	62	370
