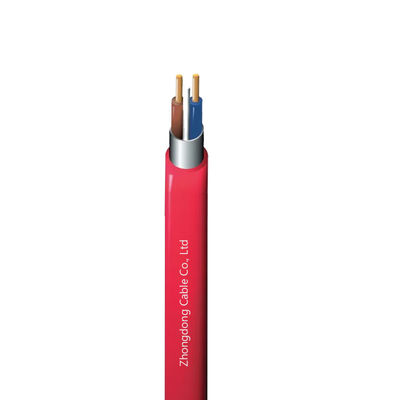

Fire Resistant STA Armoured Cable Multi Core PVC Sheathed Control Cable

Application

Suitable for indoor use, fixed installations, in public areas such as hospitals, hotels, shopping malls, airports, underground railway networks, tunnels, communication centres, and, in general, all places where it is required a high degree of protection of persons and assets or/and with a large number of people and electrical/electronic equipment.

Characteristics

1. Rated power-frepuency voltage U0/U: 3.6/6kv~26/35kv.
2. Max.admissible operating temperature of the conductor:90ºC
3. Max. short-circurt temperature of conductor shall not exceed 250ºC. (5s maximum duration)
4. The ambient temperature under installation should not below 0ºC
5.  The bending radius of a single-core cable should not less than 20 times of the cable diameter.
6. The bending radius of a multi-core cable should not less than 15 times of the cable diameter.

Construction

1. Conductor :Class 2 stranded copper conductor
2. Insulation :XLPE (Cross-Linked Polyethylene)
3. Bedding :LSZH (Low Smoke Zero Halogen)
4. Armour :SWA (Steel Wire Armour)
5. Sheath :LSZH (Low Smoke Zero Halogen)

Specification
