Custom Length Aluminium Electric Cable 600V 1000V Aluminum Conductor Wire

Custom Length Aluminium Electric Cable 600V 1000V Aluminum Conductor Wire
Custom Length Aluminium Electric Cable 600V 1000V Aluminum Conductor Wire

Large Image :  Custom Length Aluminium Electric Cable 600V 1000V Aluminum Conductor Wire

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: ISO9001, CE, CCC, RoHS, VDE, cUL, CSA
Payment & Shipping Terms:
Minimum Order Quantity: To be negotiated
Price: To be negotiated
Packaging Details: Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time: 7-30 days based on different qty
Payment Terms: ,L/C,T/T
Supply Ability: 100KM/Week
Contact Now

Custom Length Aluminium Electric Cable 600V 1000V Aluminum Conductor Wire

Description
Insulation: XLPE HPDE Voltage: 600/1000V
Length: Customized Conductor Material: Copper
Packing: Neutral Carton Packing Or Customized Application: Overhead
Highlight:

Custom Length Aluminium Electric Cable

,

1000V Aluminum Conductor Wire

XLPE Insulated Aluminium Conductor Cable AA- 8000 Series Conductor 600/1000V



Application


TypeXHHW-2MC cable is suitable for use as branch,feeder and service power distribution.It is suitable for use in wet or dry locations at temperature not to exceed 90°C.If it should be directly buried in the earth,MC cable with PVC sheathis an optimal choice.Maximum voltage rating for XHHW-2 application is 600Volts

.


Construction

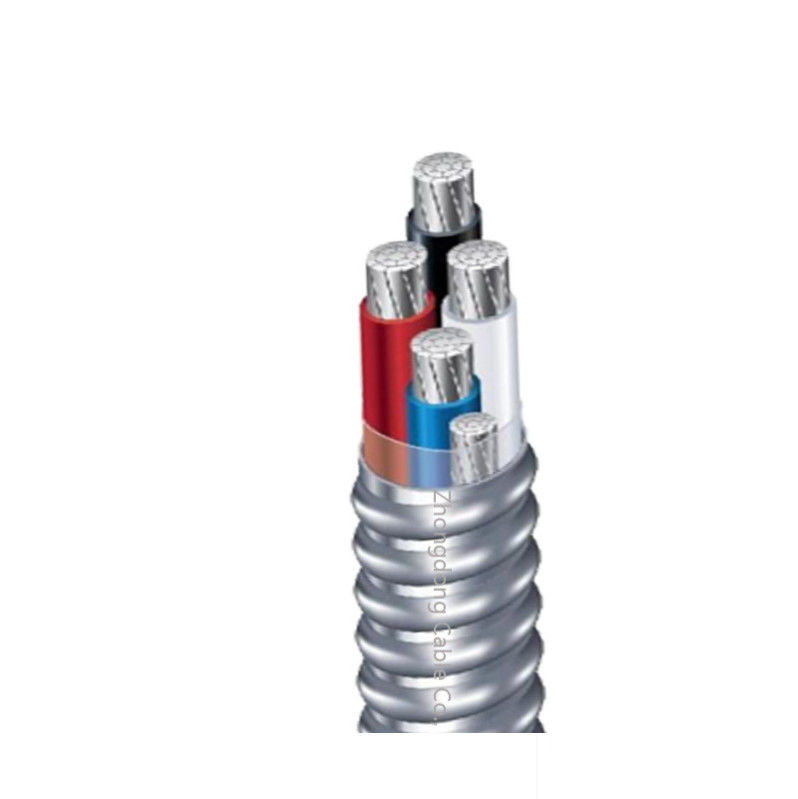

Type XHHW-2 conductors which is constructed with 8000 Series Aluminium Alloy Conductor and XLPE insulation.The insulated conductors and a bare ground are cabled and wrapped with Mylar tape and then an aluminium alloy inter-locked armour is applied.It can be manufactured with PVC sheath over the aluminum metal clad if direct burial is needed.




Specification





mm2

Conductor structure

Insulation
Material

Insulation
Thickness
(mm)

Approx overall diameter
(mm)

Approx weight
(kg/km)

Phase (compacted Al)

Neutral
(alloy)

No./mm

No./mm

1*16+1*16

7/1.72

7/1.72

XLPE


(HDPE)

1.2

12.5

110.1

1*25+1*25

7/2.15

7/2.15

1.2

14.9

163.9

1*35+1*35

7/2.54

7/2.54

1.4

17.5

229.0

1*50+1*50

7/2.92

7/2.92

1.4

20.1

300.0

1*70+1*70

19/2.15

19/2.15

1.4

23.6

423.2

1*95+1*95

19/2.54

19/2.54

1.6

27.6

585.4

2*16+1*16

7/1.72

7/1.72

1.2

14.2

175.8

2*25+1*25

7/2.15

7/2.15

1.2

16.7

258.4

2*35+1*35

7/2.54

7/2.54

1.4

19.7

361.2

2*50+1*50

7/2.92

7/2.92

1.4

22.5

472.1

2*70+1*70

19/2.15

19/2.15

1.4

26.1

658.3

2*95+1*95

19/2.54

19/2.54

1.6

30.5

908.2

3*16+1*16

7/1.72

7/1.72

1.2

16.3

241.5

3*25+1*25

7/2.15

7/2.15

1.2

19.1

353.6

3*35+1*35

7/2.54

7/2.54

1.4

22.5

493.5

3*50+1*50

7/2.92

7/2.92

1.4

25.7

644.1

3*70+1*70

19/2.15

19/2.15

1.4

29.7

895.2

3*95+1*95

19/2.54

19/2.54

1.6

34.6

1233.5


 Custom Length Aluminium Electric Cable 600V 1000V Aluminum Conductor Wire 0
