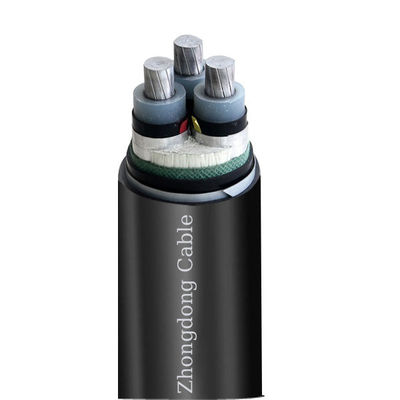

Medium Voltage MV 26/35 KV Aluminum Power Cable Copper Tape Shield PVC Sheath

Medium Voltage MV 26/35 KV Aluminum Power Cable Copper Tape Shield PVC Sheath
Medium Voltage MV 26/35 KV Aluminum Power Cable Copper Tape Shield PVC Sheath

Large Image :  Medium Voltage MV 26/35 KV Aluminum Power Cable Copper Tape Shield PVC Sheath

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: ISO9001, CE, CCC, RoHS, VDE, cUL, CSA
Payment & Shipping Terms:
Minimum Order Quantity: To be negotiated
Price: To be negotiated
Packaging Details: Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time: 7-30 days based on different qty
Payment Terms: ,L/C,T/T
Supply Ability: 100KM/Week
Contact Now

Medium Voltage MV 26/35 KV Aluminum Power Cable Copper Tape Shield PVC Sheath

Description
Insulation: XLPE HPDE Voltage: 600/1000V
Length: Customized Conductor Material: Copper
Packing: Neutral Carton Packing Or Customized Application: Overhead
Highlight:

PVC Sheath Aluminum Power Cable

,

MV 35 KV Aluminum Power Cable

,

Copper Tape Shield Aluminum Power Cable

Medium Voltage 26/35 kV Aluminium Conductor Cable Copper Tape Shield PVC Sheath





Application





Medium-voltage aluminum alloy cables are used in ‌power distribution and industrial systems‌ where ‌lightweight design, cost efficiency, and corrosion resistance‌ are critical Key applications include:

  1. ‌Urban/Suburban Grids‌: Overhead or underground power distribution (1–35 kV) for residential/commercial areas, reducing installation costs vs. copper.
  2. ‌Industrial Power Networks‌: Factories, mines, and ports requiring durable, corrosion-resistant cables for machinery and substation links.
  3. ‌Renewable Energy‌: Solar/wind farm connections, leveraging lightweight aluminum for long-span installations.
  4. ‌Railway Electrification‌: Overhead lines or ground power supply with high mechanical strength.

Medium Voltage MV 26/35 KV Aluminum Power Cable Copper Tape Shield PVC Sheath 0Medium Voltage MV 26/35 KV Aluminum Power Cable Copper Tape Shield PVC Sheath 1Medium Voltage MV 26/35 KV Aluminum Power Cable Copper Tape Shield PVC Sheath 2







Construction



Medium Voltage MV 26/35 KV Aluminum Power Cable Copper Tape Shield PVC Sheath 3Medium Voltage MV 26/35 KV Aluminum Power Cable Copper Tape Shield PVC Sheath 4



  1. Conductor
  2. Conductor Shiel
  3. Insulation
  4. Metal Shield Layer
  5. Filler
  6. Binder Tape
  7. Armouring
  8. Outer sheath





Laying Method



Pipe laying, trench laying, tunnel laying, vertical shaft and bridge laying, etc.







Specification





Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approx outer diameter of cable
mm

Approx cable weight
kg/km



Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approxi outer diameter of cable
mm

Approx cable weight
kg/km

1×25

6.0±0.1

12.2

21.1

604

3×25

6.0±0.1

12.2

39.0

1909

1×35

6.6±0.2

12.8

21.7

670

3×35

6.6±0.2

12.8

41.6

2167

1×50

7.6±0.2

13.8

22.9

759

3×50

7.6±0.2

13.8

44.6

2485

1×70

9.2±0.2

15.4

24.5

869

3×70

9.2±0.2

15.4

48.2

2899

1×95

10.9±0.2

17.1

26.4

993

3×95

10.9±0.2

17.1

51.6

3338

1×120

12.2±0.2

18.4

27.7

1110

3×120

12.2±0.2

18.4

54.9

3802

1×150

13.6±0.2

19.8

29.2

1253

3×150

13.6±0.2

19.8

58.0

4292

1×185

15.2±0.2

21.4

30.8

1412

3×185

15.2±0.2

21.4

61.9

4861

1×240

17.4±0.2

23.8

33.4

1669

3×240

17.4±0.2

23.8

67.5

5777

1×300

19.5±0.2

26.3

37.5

2306

3×300

19.5±0.2

26.3

73.1

6782

1×400

22.0±0.2

29.2

40.6

2758

3×400

22.0±0.2

29.2

82.7

9086

1×500

24.8±0.2

33.2

45.0

3296

3×500

24.8±0.2

332

90.4

10871

1×630

28.2±0.2

366

48.7

3875

3×630

282±0.2

36.6

98.7

12870

1×800

34.0±0.2

42.4

54.7

4663
