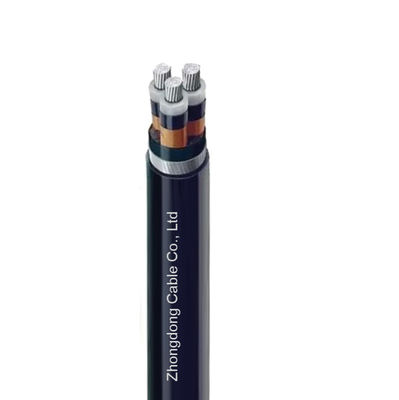

XLPE Insulated Aluminium Conductor Cable Steel Wire Armoured PVC Sheath 8.7KV 15kV

Large Image : XLPE Insulated Aluminium Conductor Cable Steel Wire Armoured PVC Sheath 8.7KV 15kV

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	ISO9001, CE, CCC, RoHS, VDE, cUL, CSA

Payment & Shipping Terms:

Minimum Order Quantity:	To be negotiated
Price:	To be negotiated
Packaging Details:	Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

XLPE Insulated Aluminium Conductor Cable Steel Wire Armoured PVC Sheath 8.7KV 15kV

Description

Insulation:	XLPE HPDE	Voltage:	8.7/15kV
Length:	Customized	Conductor Material:	Copper
Packing:	Neutral Carton Packing Or Customized	Application:	Overhead
Highlight:	XLPE Insulated Aluminium Conductor Cable , Steel Wire Armoured Aluminium Conductor Cable

8.7/15kV Aluminium Conductor Cable Steel Wire Armoured XLPE Insulated PVC Sheath Cable

Application

Distribution and signalling power cable for static outdoor application (with protection against direct UV-irradiation), in ground, in water, within facilities, in cable canals, in concrete, in conditions requiring increased electric protection and protection against mechanical damages. Used in electric power plants, transformer stations, industrial plants, metropolitan networks and other electric plants and for connection of signalling devices in industry, traffic and similar. Concentric conductor can be used as neutral, protective or earth connection, and if there is a danger of damages caused by digging, it acts as protection against contact voltage in case of rough insulation damage.

Construction

Conductor
Conductor Shiel
Insulation
Metal Shield Layer
Filler
Binder Tape
Armouring
Outer sheath

XLPE Insulated Aluminium Conductor Cable Steel Wire Armoured PVC Sheath 8.7KV 15kV 2

Laying Method

Pipe laying, trench laying, tunnel laying, vertical shaft and bridge laying, etc.

Specification

Specs mm²	Conductor diameter mm	Outer thickness of insulation ±1.0mm	Approx outer diameter of cable mm	Approx cable weight kg/km	Specs mm²	Conductor diameter mm	Outer thickness of insulation ±1.0mm	Approxi outer diameter of cable mm	Approx cable weight kg/km
1×25	6.0±0.1	12.2	21.1	604	3×25	6.0±0.1	12.2	39.0	1909
1×35	6.6±0.2	12.8	21.7	670	3×35	6.6±0.2	12.8	41.6	2167
1×50	7.6±0.2	13.8	22.9	759	3×50	7.6±0.2	13.8	44.6	2485
1×70	9.2±0.2	15.4	24.5	869	3×70	9.2±0.2	15.4	48.2	2899
1×95	10.9±0.2	17.1	26.4	993	3×95	10.9±0.2	17.1	51.6	3338
1×120	12.2±0.2	18.4	27.7	1110	3×120	12.2±0.2	18.4	54.9	3802
1×150	13.6±0.2	19.8	29.2	1253	3×150	13.6±0.2	19.8	58.0	4292
1×185	15.2±0.2	21.4	30.8	1412	3×185	15.2±0.2	21.4	61.9	4861
1×240	17.4±0.2	23.8	33.4	1669	3×240	17.4±0.2	23.8	67.5	5777
1×300	19.5±0.2	26.3	37.5	2306	3×300	19.5±0.2	26.3	73.1	6782
1×400	22.0±0.2	29.2	40.6	2758	3×400	22.0±0.2	29.2	82.7	9086
1×500	24.8±0.2	33.2	45.0	3296	3×500	24.8±0.2	332	90.4	10871
1×630	28.2±0.2	366	48.7	3875	3×630	282±0.2	36.6	98.7	12870
1×800	34.0±0.2	42.4	54.7	4663

FAQ

Q1. How can I place order?
A: You can contact us by email about your order details, or place order online.

Q2. Does your company provide OEM&ODM services?
A: Of course, we can produce cables by your samples or technical drawings.

Q3. Does your company test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q4: Are you a cable and wire manufacturer?
--Yes, our company is an integrated set of industry and trade company.

Q5: Can you offer a discount on cables?
--Sure, the price is negotiable. We will definitely give a discount based on your annual order.

Q6: Can you offer free samples?
--Of course, according to your order quantity, we'd like to provide free sample.

Q7. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. Trade terms of EXW, FOB, CFR, CIF, DDU are available.
