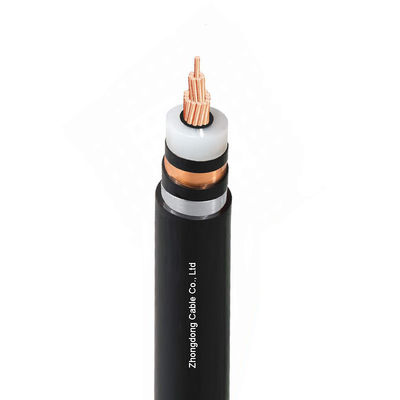

MV 18KV 30kV Armored Electrical Cable Single Core 1X185mm2 Copper Conductor XLPE Insulated

MV 18KV 30kV Armored Electrical Cable Single Core 1X185mm2 Copper Conductor XLPE Insulated
MV 18KV 30kV Armored Electrical Cable Single Core 1X185mm2 Copper Conductor XLPE Insulated

Large Image :  MV 18KV 30kV Armored Electrical Cable Single Core 1X185mm2 Copper Conductor XLPE Insulated

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: IEC,CE,ISO,TUV
Model Number: YJ(S)V62 YJ(S)V22
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time: 7-30 days based on different qty
Payment Terms: ,L/C,T/T
Supply Ability: 100KM/Week
Contact Now

MV 18KV 30kV Armored Electrical Cable Single Core 1X185mm2 Copper Conductor XLPE Insulated

Description
Armored: Steel Tape Sheath Material: PVC
Insulation: XLPE Rated Voltage: 8.7/35kV
Conductor: Copper No Of Core: 1,3
Highlight:

1X185mm2 Armored Electrical Cable

,

1X185mm2 Single Core Armoured Cable

MV 18/30kV Armored Electrical Cable Single Core 1X185mm2 Copper Conductor XLPE Insulated







Construction



MV 18KV 30kV Armored Electrical Cable Single Core 1X185mm2 Copper Conductor XLPE Insulated 0







  1. Conductor: Circular compacted stranded Copper or aluminium
  2. Conductor screen: Extruded semi-conductive compound
  3. Insulation: XLPE
  4. Insulation screen: Extruded semi-conductive compound
  5. Metallic screen: Copper Wire
  6. Binder tape: non-hygroscopic material
  7. Inner covering(bedding):  PVC
  8. Metallic armor: Galvanized steel tape



Application



It is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable.



MV 18KV 30kV Armored Electrical Cable Single Core 1X185mm2 Copper Conductor XLPE Insulated 1MV 18KV 30kV Armored Electrical Cable Single Core 1X185mm2 Copper Conductor XLPE Insulated 2MV 18KV 30kV Armored Electrical Cable Single Core 1X185mm2 Copper Conductor XLPE Insulated 3

Specification



YJV62   YJV22-26/35kV  Cable Structure Parameters



Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approx outer diameter of cable
mm

Approx cable weight
kg/km

1×50

7.6±0.2

312

40.6

2435

1×70

9.2±0.2

32.8

42.4

2754

1×95

10.9±0.2

345

44.1

3108

1×120

12.2±0.2

35.8

45.5

3438

1×150

13.6±0.2

372

47.1

3805

1×185

15.2±0.2

38.8

48.9

4266

1×240

17.4±0.2

410

51.1

4925

1×300

19.5±0.2

43.1

53.5

5666

1×400

22.0±0.2

45.6

56.2

6598

1×500/35

24.8±0.2

492

62.5

8205

1×630/35

28.2±0.2

52.6

66.3

9771

1×800/35

34.0±0.2

58.4

72.2

11950
