0.6Kv 1kv XLPE Aluminum Alloy ABC Power Cable Underground Armored Or Unarmored Cable

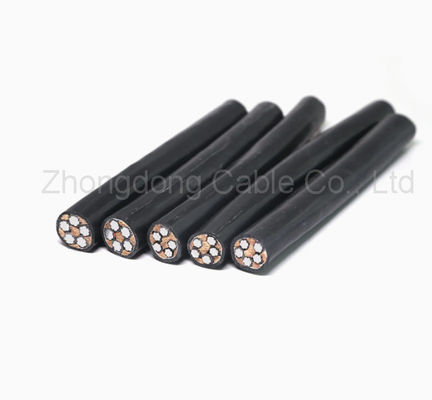

Large Image : 0.6Kv 1kv XLPE Aluminum Alloy ABC Power Cable Underground Armored Or Unarmored Cable

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CCC,ISO,TUV,CE
Model Number:	ABC

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum/ Steel Drum
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

0.6Kv 1kv XLPE Aluminum Alloy ABC Power Cable Underground Armored Or Unarmored Cable

Description

Application:	Overhead Distribution Line	Cores Nos:	1,2,3,4 More Multicore
Rated Voltage:	0.6/1 KV	Installation Degree:	-20℃-90℃
Neutral Messengers:	AAC, AAAC Or ACSR	Insulation:	XLPE/PE/PVC
Highlight:	Aluminum Alloy ABC Power Cable , 0.6Kv ABC Underground Armored Cable

Overhead ABC Cable 0.6/1kv XLPE Aluminum Alloy Power Cable Underground Armored/Unarmored Cable

Applicatiom

Widely used in the energy field (power stations, nuclear power posts, urban and rural power grids, coal mines, petrochemicals, etc.), transportation field (civil aviation, nuclear power plant) network, coal mine, petrochemicals, etc.), transportation field (civil aviation airports, railroads and urban rail transportation, ships and transportation field (civil aviation, airport, railway and urban railway transportation, ships and ports, etc.), engineering field (engineering construction, steel, metallurgy, construction, etc.) Iron, metallurgy, construction, etc.) of key projects.

0.6Kv 1kv XLPE Aluminum Alloy ABC Power Cable Underground Armored Or Unarmored Cable 0

Construction

Phase Conductor: Class 2 Circular compacted stranded aluminum
Conductor Screen: Extruded semi-conductive layer
Insulation: XLPE (Cross-linked polyethylene)
Insulation Screen: Extruded semi-conductive layer
Metallic Screen: Copper wire screen or copper tape screen
Separator: Semi-conductive swellable tape
Outer Sheath: HDPE (High Density polyethylene)

Characteristics

0.6/1kV
Operating Temperature: 90°C XLPE
Temperature Range: -20°C PE sheath
Short Circuit Temperature( 5 seconds maximum duration ): 250°C XLPE
Bending Radius: 15 x overall diameter

Specification

ominal Cross Section	Minimum Breaking Load	current Rating in Air	Nominal Over all Diameter	Total Weight	Outer Diameter
mm2	Kn	A	mm	kg/km	mm
2×16RM	1.910	2.5	72	147	15.6
2×25RM	1.200	4.0	107	208	18
2×35RM	0.868	5.5	132	277	20
2×50RM	0.641	8.0	165	361	23.5
4×16RM	1.910	2.5	72	286	18.8
4×25RM	1.200	4.0	107	430	21.2
4×35RM	0.868	5.5	132	553	24.1
4×50RM	0.641	8.0	165	746	27.8
4×70RM	0.443	10.7	205	1.009	31.8
4×95RM	0.320	13.7	240	1.332	37.8
4×120RM	0.253	18.6	290	1.632	54.4
4×35+1×35RM	0.868/0.868	5.5/5.5	132/132	694	30
4×50+1×25RM	0.641/1.200	8.0/4.0	165/107	814	31.9
4×50+1×35RM	0.641/0.868	8.5/5.5	165/132	845	31.9
4×70+1×25RM	0.443/1.200	10.7/4.0	205/107	1.105	36
4×70+2×25RM	0.443/1.200	10.7/4.0	205/107	1.217	40
4×70+1×35RM	0.443/0.868	10.7/5.5	205/132	1.15	36.2
