Medium Voltage 11kV Aerial Bundled Cable ABC Overhead Transmission Cable

Large Image : Medium Voltage 11kV Aerial Bundled Cable ABC Overhead Transmission Cable

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CCC,ISO,TUV,CE
Model Number:	ABC

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum/ Steel Drum
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

Medium Voltage 11kV Aerial Bundled Cable ABC Overhead Transmission Cable

Description

Application:	Overhead Distribution Line	Cores Nos:	1,2,3,4 More Multicore
Rated Voltage:	0.6/1 KV	Installation Degree:	-20℃-90℃
Neutral Messengers:	AAC, AAAC Or ACSR	Insulation:	XLPE/PE/PVC
Highlight:	11kV Aerial Bundled Cable ABC , Aerial Bundled Cable Medium Voltage , Medium Voltage Overhead Transmission Cable

Medium Voltage 11kV Aerial Bundled ABC Cable Overhead Transmission Cable

Application:

This product is suitable for overhead power lines that are easy to produce short circuit faults and safety hazards to humans and animals through dense forests and trees

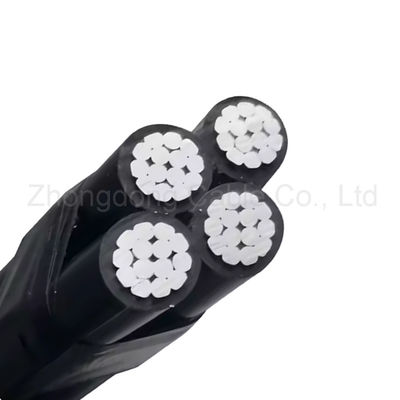

Medium Voltage 11kV Aerial Bundled Cable ABC Overhead Transmission Cable 0

Construction

Conductor: Aluminum (lightweight, cost-effective).
Insulation:PE or PVC.
Sheath: Typically low-smoke halogen-free (LSHF) compound for reduced toxicity and smoke emission during fires.

Specifications

No of cores x cross section	Nominal conductor diameter	Nominal insulation thickness	Nominal sheath thickness	AAAC/1120 support conductor size	Nominal overall dia	Weight	Continuous current rating
No of cores x cross section	Nominal conductor diameter	Nominal insulation thickness	Nominal sheath thickness	AAAC/1120 support conductor size	Nominal overall dia	Weight	Still air	1m/s wind	2m/s wind
mm^2	mm	mm	mm	No/mm	mm	kg/km	A	A	A
6.35/11kV
3x35	6.9	3.4	1.2	7/4.75	52.4	1370	110	155	185
3x50	8.1	3.4	1.2	7/4.75	54.6	1530	130	185	225
3x70	9.7	3.4	1.2	7/4.75	57.8	1790	160	235	280
3x95	11.4	3.4	1.2	7/4.75	61.3	2100	195	285	345
3x120	12.8	3.4	1.2	19/3.50	67.3	2540	230	335	405
3x150	14.2	3.4	1.2	19/3.50	70.1	2840	255	380	460
3x185	15.7	3.4	1.2	19/3.50	73.1	3190	295	440	530
