Aluminium Alloy Conductor Power Cable XLPE Insulation PVC Sheath Metal Tape Armouring

Large Image : Aluminium Alloy Conductor Power Cable XLPE Insulation PVC Sheath Metal Tape Armouring

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	ISO9001, CE, CCC, RoHS, VDE, cUL, CSA

Payment & Shipping Terms:

Minimum Order Quantity:	To be negotiated
Price:	To be negotiated
Packaging Details:	Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

Aluminium Alloy Conductor Power Cable XLPE Insulation PVC Sheath Metal Tape Armouring

Description

Insulation:	XLPE HPDE	Voltage:	18/30kV
Length:	Customized	Conductor Material:	Aluminium Alloy 8000 Series
Packing:	Neutral Carton Packing Or Customized	Application:	Overhead Lines Or Ground Power Supply
Highlight:	XLPE Insulation Alloy Conductor Power Cable , PVC Sheath Alloy Conductor Power Cable

Aluminium Alloy Conductor Cable XLPE Insulation PVC Sheath Metal Tape Armouring Power Cable

Application

Aluminum alloy cables are widely utilized in various industries due to their lightweight, cost-effectiveness, corrosion resistance, and excellent electrical conductivity.

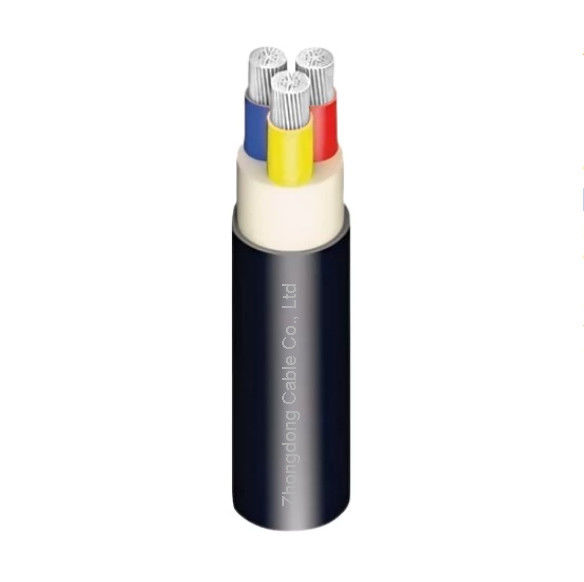

Aluminium Alloy Conductor Power Cable XLPE Insulation PVC Sheath Metal Tape Armouring 0

Construction

Conductor: AA-8000 Series AL-Alloy
Conductor Shield
Insulation
Binder Tape
Outer sheath: PVC

Specification

YJLHV62 YJLHV22-18/30kV Cable Structure Parameters

Specs mm²	Conductor diameter mm	Outer thickness of insulation ±1.0mm	Approx outer diameter of cable mm	Approx cable weight kg/km
3×50	7.6±0.2	256	68.1	4915
3×70	9.2±0.2	27.2	71.7	5417
3×95	10.9±0.2	28.9	75.8	6002
3×120	12.2±0.2	302	80.3	7343
3×150	13.6±0.2	31.6	83.5	7932
3×185	15.2±0.2	33.2	87.3	8705
3×240	17.4±0.2	35.4	92.5	9801
3×300	19.5±0.2	37.5	97.4	10875
3×400	22.0±0.2	40.0	103.5	12531
3×500	24.8±0.2	43.6	111.8	14423
3×630	28.2±0.2	47.0	119.8	16614
