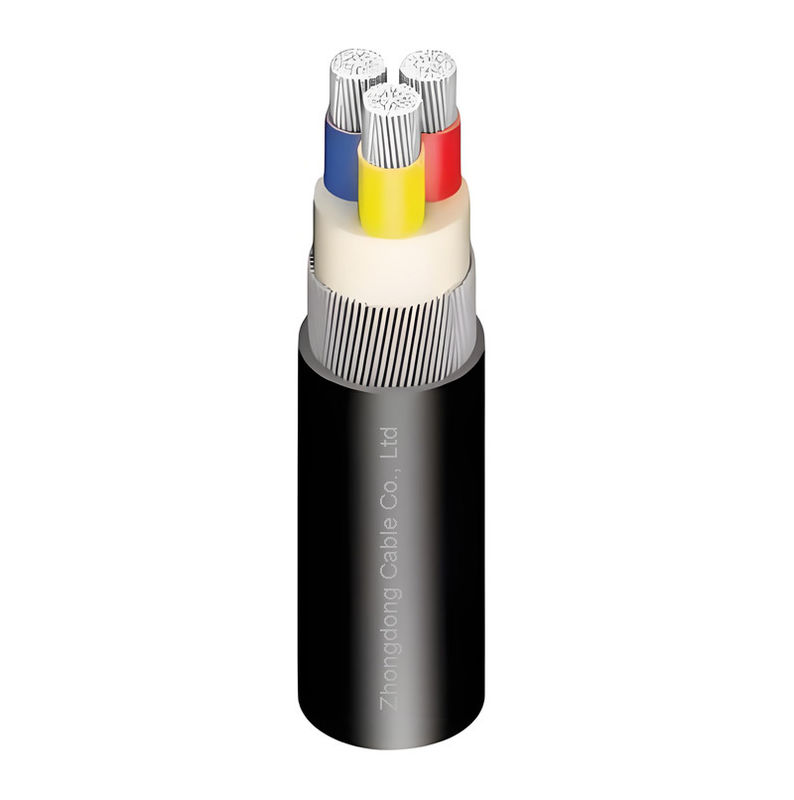

Underground Aluminum Alloy Conductor Cable AA-8000 Series Customized Length

Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approx outer diameter of cable
mm

Approx cable weight
kg/km

Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approx outer diameter of cable
mm

Approx cable weight
kg/km

1×25

6.0±0.1

17.6

25.1

786

3×25

6.0±0.1

17.6

48.8

2645

1×35

6.6±0.2

18.2

25.9

857

3×35

6.6±0.2

18.2

50.3

2912

1×50

7.6±0.2

19.2

26.9

954

3×50

7.6±0.2

19.2

52.8

3291

1×70

9.2±0.2

20.8

28.6

1085

3×70

9.2±0.2

20.8

56.4

3723

1×95

10.9±0.2

22.5

30.3

1218

3×95

10.9±0.2

22.5

60.6

4257

1×120

12.2±0.2

23.8

31.8

1356

3×120

12.2±0.2

23.8

63.7

4740

1×150

13.6±0.2

25.2

332

1494

3×150

13.6±0.2

25.2

66.9

5239

1×185

15.2±0.2

26.8

36.3

1679

3×185

15.2±0.2

26.8

70.7

5886

1×240

17.4±0.2

29.0

38.6

2291

3×240

17.4±0.2

29.0

76.0

6823

1×300

19.5±0.2

31.1

40.9

2581

3×300

19.5±0.2

31.1

82.2

8561

1×400

22.0±0.2

33.6

43.8

3036

3×400

220±0.2

33.6

88.1

10044

1×500

24.8±0.2

37.2

47.7

3558

3×500

248±0.2

37.2

96.4

11772

1×630

28.2±0.2

40.6

51.3

4130

3×630

282±0.2

40.6

104.6

13837

1×800

34.0±0.2

46.4

57.4

4968
