Aluminum Conductor ABC Cable Service Drop Cable for South America

Large Image : Aluminum Conductor ABC Cable Service Drop Cable for South America

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CCC,ISO,TUV,CE
Model Number:	ABC

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum/ Steel Drum
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

Aluminum Conductor ABC Cable Service Drop Cable for South America

Description

Application:	Overhead Distribution Line	Cores Nos:	1,2,3,4 More Multicore
Rated Voltage:	15/35kV	Installation Degree:	-20℃-90℃
Neutral Messengers:	AAC, AAAC Or ACSR	Insulation:	PE/PVC
Highlight:	aluminum conductor abc power cable , aluminum conductor aerial bundled cable , aluminum conductor service drop cable

Aluminum Conductor ABC Cable /Service Drop Cable for South America

Application:‌

‌Rural Electrification‌
‌Urban Power Distribution‌
‌Temporary Installations‌
‌Forests and Vegetated Areas‌
‌Coastal or High-Corrosion Zones‌
‌LV to MV Networks‌
‌Renewable Energy Integration‌

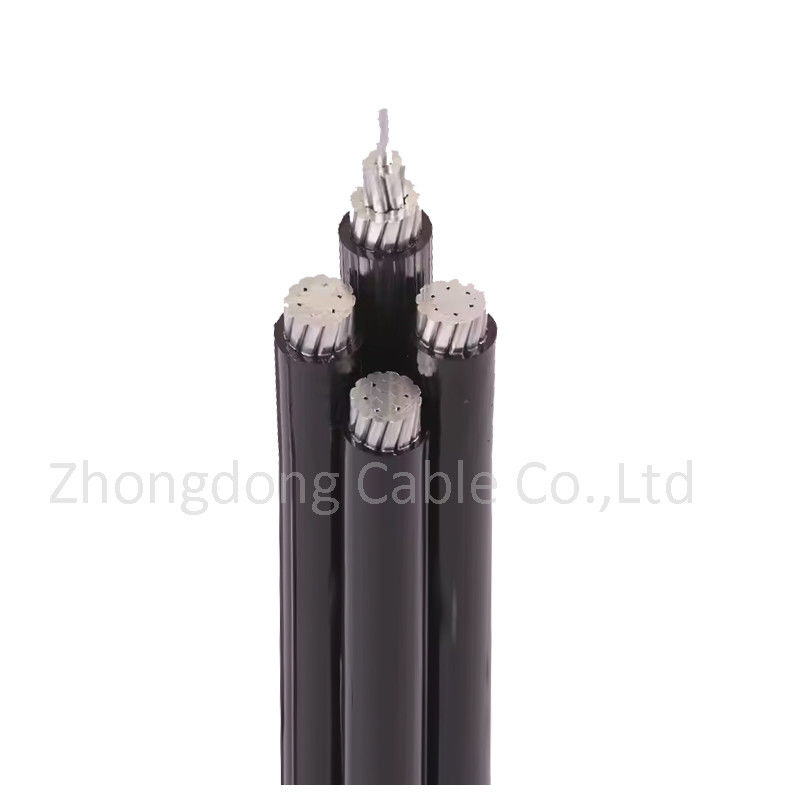

Aluminum Conductor ABC Cable Service Drop Cable for South America 0

Construction

Conductor: Aluminum (lightweight, cost-effective).
Insulation:PE or PVC.
Sheath: Typically low-smoke halogen-free (LSHF) compound for reduced toxicity and smoke emission during fires.

Specifications

Size (AWG or kcmil)	Stranding	Conductor Diameter (mils)	Covering Thickness (mils)		Cable O.D. (mils)	Rated Strength (lbs)	Weight per 1000 ft. (lbs)
Size (AWG or kcmil)	Stranding	Conductor Diameter (mils)	Inner Layer	Outer Layer	Cable O.D. (mils)	Rated Strength (lbs)	Weight per 1000 ft. (lbs)
4	6/1	250	75	75	550	1767	136
2	6/1	316	75	75	616	2708	184
1/0	6/1	398	75	75	698	4161	255
2/0	6/1	447	75	75	747	5045	303
3/0	6/1	502	75	75	802	6289	362
4/0	6/1	563	75	75	863	7933	432
266.8	18/1	609	75	75	909	6536	441
266.8	26/7	642	75	75	942	10735	452
336.4	18/1	684	75	75	984	8246	536
336.4	26/7	720	75	75	1020	13395	555
336.4	30/7	741	75	75	1041	16435	621
397.5	18/1	743	75	75	1043	9443	611
397.5	24/7	772	75	75	1072	13870	609
397.5	26/7	783	75	75	1083	1545	645
477	24/7	846	75	75	1146	16340	719
477	26/7	858	75	75	1158	18525	762
477	30/7	883	75	75	1183	22610	854
556.5	18/1	879	75	75	1179	13015	813
556.5	24/7	914	75	75	1214	18810	828
556.5	26/7	927	75	75	1227	21470	878
636	18/1	940	75	75	1240	14915	912
636	24/7	977	75	75	1277	20900	936
636	26/7	990	75	75	1290	23940	993
795	26/7	1108	80	75	1428	29925	1234
795	45/7	1063	80	80	1383	20995	1031
