Medium Voltage Aerial Bundled Cable ABC Cable 6.35/11kV Screened MV ABC Cable to IEC 60502

Large Image : Medium Voltage Aerial Bundled Cable ABC Cable 6.35/11kV Screened MV ABC Cable to IEC 60502

Product Details:

Contact Now

Medium Voltage Aerial Bundled Cable ABC Cable 6.35/11kV Screened MV ABC Cable to IEC 60502

Description

Medium Voltage Aerial Bundled Cable ABC Cable 6.35/11kV Screened MV ABC Cable to IEC 60502

APPLICATION

Three XLPE insulated screened cores are bundled around the galvanized steel wires in a right hand lay.Primarily used for overhead service applications such as street lighting,outdoor lighting,and temporary service for construction. To be used at voltages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75℃ for polyethylence insulated conductors or 90℃ for crosslinked polyethylene(XLPE) insulated conductors.

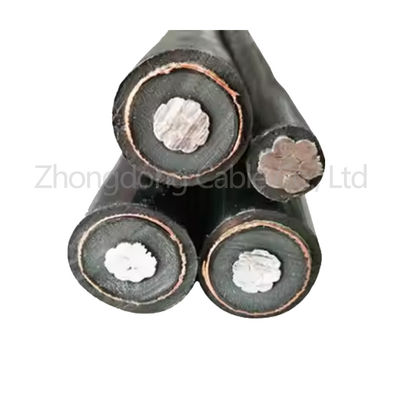

CONSTRUCTION

Conductor: Circular Compacted Stranded H68 Aluminium ( Class 2)

Conductor Screen:Extruded Semi-conductive Layer

Insulation:XLPE

Insulation Screen:Extruded Semi-conductive Layer

Metallic Screen:Copper wire screen or copper tape screen

Outer Sheath:HDPE

Support Conductor:Galvanized steel wires

Medium Voltage Aerial Bundled Cable ABC Cable 6.35/11kV Screened MV ABC Cable to IEC 60502 0

Medium Voltage Aerial Bundled Cable ABC Cable 6.35/11kV Screened MV ABC Cable to IEC 60502 1

STANDARD

IEC 60502

Specification

NO.Cores X Nominal Cross Section	Phase Conductor		Messenger Suspension Unit			Continuous Current Rating
NO.Cores X Nominal Cross Section	Stranding	Nominal Sectional Area	Stranding	Nominal Sectional Area	Breaking Load	Continuous Current Rating
No.×mm²	No.×mm	mm2	No.×mm	mm2	KN	A
3X50 + 1X25	19/1.78	50	7/3.0	50	60	116
3X70 + 1X50	19/2.14	70	7/3.15	50	62	210
3X95+ 1X50	19/2.52	95	7/3.0	50	60	173
3X185+1X120	37/2.52	185	7/4.67	120	150	259
3X150 +1X50	37/2.25	150	7/3.15	50	62	365
3X240 +1X50	61/2.25	240	7/3.15	50	62	500

ABOUT US

PACKAGE AND SHIPPING

APPLICATION

FAQ

Q1.Can you provide other standard ABC Cable?

A1: Yes, our cables comply all international standards.

Q2.Are you a factory or trading company?

A2: We are a manufacturer.

Q3:How to get a free sample?
A3.Ofcourse,we could provide free samples and you charge the shipping cost
Q4. How long delivery time?
A4.It usualy take 7-10days for sample order and 25-30days for big order.
Q5.What is your payment term?
A5.Ourpaymenterm is usualy T/T30% in advanced,the balance before picking up the goods
Q6.Do you accept OEM service?
A6.Yes,we wil customize the products according to your specific requirements
