Armoured 110kV High Voltage Cable XLPE Insulated Copper Wire Screen Cable
APPLICATION
The cable is suitable for use in high voltage transmission networks, in systems of rated voltages from 110 kV grade up to and including115 kV grade.
CONSTRUCTION

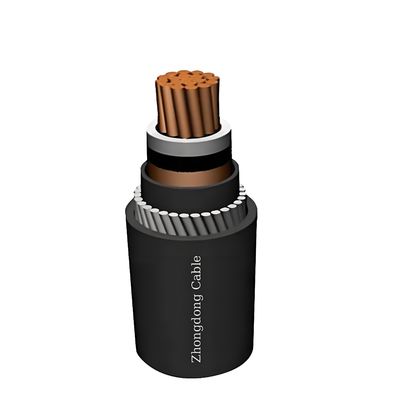

Conductor: Stranded circular or segmental (Milliken) compacted copper conductor
Conductor shield:Semi-conductive shield
Insulation: Cross-Linked Polyethylene(XLPE)
Insulation shield: Semi-conductive shield
Metal shielding layer:Copper Wire
Binder tape:Non-woven fabrics
Metal Laminate Foil: Aluminum laminated tape
Outer sheath: PE
STANDARD
IEC 60840 IEC 62067
CHARACTERISTIC
Voltage Rating Uo/U: 64/110kV(123kV)
Continuous Operation: +90°C Conductor Temp
Emergency Overload: +105°C Conductor Temp (≤100 hrs/year, ≤500 hrs/lifetime)
Short Circuit:+250°C Conductor Temp (for calculated duration, typically 1-5s)
Installation: ≥ 0°C
Ambient Operation:≥ -40°C
PARAMETERS
|
Conductor
|
Insulation
|
Nominal Area of Copper Wires
|
Outer Jacket
|
|
Nominal
Area
|
Max.DC
resistance at 20℃
|
Max.AC
resistance at 90℃
|
Nominal Thickness of Insulation
Layers
|
Nominal
Thickness
|
Approx.
Overall
Diameter
|
Approx.
Overall
Weight
|
|
Cond.
Screen
|
XLPE
|
Ins.
Screen
|
|
mm²
|
Ω/km
|
Ω/km
|
mm
|
mm
|
mm
|
mm²
|
mm
|
mm
|
kg/m
|
|
300 R
|
0.0601
|
0.0787
|
1.2
|
15
|
1
|
95
|
3.5
|
67.9
|
6.47
|
|
400 R
|
0.047
|
0.0627
|
1.2
|
15
|
1
|
95
|
3.5
|
70.5
|
7.41
|
|
500 R
|
0.0366
|
0.0502
|
1.2
|
15
|
1
|
95
|
4
|
74.9
|
8.79
|
|
630 R
|
0.0283
|
0.0407
|
1.2
|
15
|
1
|
95
|
4
|
78.4
|
10.21
|
|
800 R
|
0.0221
|
0.0338
|
1.2
|
15
|
1
|
95
|
4
|
82.4
|
12.17
|
|
1000 S
|
0.0176
|
0.024
|
1.5
|
15
|
1.2
|
95
|
4
|
92.1
|
14.74
|
|
1200 S
|
0.0151
|
0.0211
|
1.5
|
15
|
1.2
|
95
|
4.5
|
97.1
|
17
|
|
1400 S
|
0.0129
|
0.0185
|
1.5
|
15
|
1.2
|
95
|
4.5
|
99.1
|
18.99
|
|
1600 S
|
0.0113
|
0.0168
|
1.5
|
15
|
1.2
|
95
|
4.5
|
103.1
|
20.72
|
|
2000 S
|
0.009
|
0.0143
|
1.5
|
15
|
1.2
|
95
|
4.5
|
108.1
|
24.42
|
|
2500 S
|
0.0072
|
0.0125
|
1.5
|
15
|
1.2
|
95
|
4.5
|
116.1
|
29.99
|
