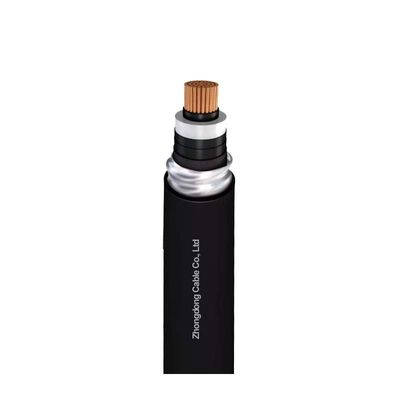

38/66kV(72.5kV) High Voltage Cable Copper Conductor XLPE Insulation Lead Sheath Power Cable

Certification
China Zhongdong Cable Co., Ltd. certification
China Zhongdong Cable Co., Ltd. certification
I'm Online Chat Now

38/66kV(72.5kV) High Voltage Cable Copper Conductor XLPE Insulation Lead Sheath Power Cable

38/66kV(72.5kV) High Voltage Cable Copper Conductor XLPE Insulation Lead Sheath Power Cable
38/66kV(72.5kV) High Voltage Cable Copper Conductor XLPE Insulation Lead Sheath Power Cable

Large Image :  38/66kV(72.5kV) High Voltage Cable Copper Conductor XLPE Insulation Lead Sheath Power Cable

Product Details:
Place of Origin: Hebei,China
Brand Name: Zhongdong
Certification: CCC,IEC,VDE,TUV,ISO
Model Number: PV1-F
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: woodern drum
Delivery Time: 10work days
Payment Terms: L/C,T/T
Supply Ability: 500KM/Week

38/66kV(72.5kV) High Voltage Cable Copper Conductor XLPE Insulation Lead Sheath Power Cable

Description
Insulation Material: Xlpe Jacket: PE
Conductor Material: Stranded Circular Or Segmental (Milliken) Compacted Copper Conductor Nominal Voltage: 38/66kV(72.5kV)
Core: 1 Core Application: Underground

38/66kV(72.5kV) High Voltage Cable Copper Conductor XLPE Insulation Lead Sheath Power Cable


APPLICATION

The cable is suitable for use in high voltage transmission networks, in systems of rated voltages from 60 kV grade up to and including 69 kV grade.


CONSTRUCTION

  38/66kV(72.5kV) High Voltage Cable Copper Conductor XLPE Insulation Lead Sheath Power Cable 038/66kV(72.5kV) High Voltage Cable Copper Conductor XLPE Insulation Lead Sheath Power Cable 1


Conductor: Stranded circular or segmental (Milliken) compacted copper conductor

Conductor shield:Semi-conductive shield

Insulation: Cross-Linked Polyethylene(XLPE)

Insulation shield: Semi-conductive shield

Metal shielding layer:Corrugated Aluminum Sheath or Lead Sheath or Aluminum Laminated Tape

Binder tape:Non-woven fabrics

Metal Laminate Foil: Aluminum laminated tape

Outer sheath: PE


STANDARD

IEC 60840 IEC 62067


CHARACTERISTIC

Voltage Rating Uo/U: 38/66kV(72.5kV)

‌Continuous Operation: ‌+85°C‌ Conductor Temp

‌Emergency Overload‌: ‌+95°C‌ Conductor Temp (≤100 hrs/year, ≤500 hrs/lifetime)

‌Short Circuit:‌‌+200°C‌ Conductor Temp (for calculated duration, typically 1-5s)

‌Installation:‌≥ 5°C

‌Ambient Operation:‌≥ -40°C


PARAMETERS

Conductor

Insulation

Nominal
Thickness
of Lead
Sheath

Outer Jacket

Nominal
Area

Max.DC
Resistance at 20℃

Max.AC
Resistance at 90 ℃

Nominal Thickness of Insulation  Layers

Nominal
Thickness

Approx .
Overall
Diameter

Approx.
Overall
Weight

Cond.
Screen

XLPE

Ins.
  Screen

mm²

Ω/km

Ω/km

mm

mm

mm

mm

mm

mm

kg/m

240 R

0.0754

0.0979

1.0

11.0

1.0

2.1

3.5

56.9

7.54

300 R

0.0601

0.0789

1.0

11.0

1.0

2.2

3.5

59.5

8.58

400 R

0.0470

0.0629

1.0

11.0

1.0

2.3

3.5

62.3

9.87

500 R

0.0366

0.0505

1.0

11.0

1.0

2.3

4.0

66.7

11.47

630R

0.0283

0.0410

1.0

11.0

1.0

2.4

4.0

70.4

13.35

800 R

0.0221

0.0343

1.0

11.0

1.0

2.5

4.0

74.6

15.82

1000S

0.0176

0.0241

1.5

11.0

1.2

2.7

4.0

85.0

19.74

1200 S

0.0151

0.0212

1.5

11.0

1.2

2.8

4.5

90.2

22.61

1400S

0.0129

0.0187

1.5

11.0

1.2

2.9

4.5

92.4

25.07

1600 S

0.0113

0.0169

1.5

11.0

1.2

3.0

4.5

96.6

27.47

2000 S

0.0090

0.0145

1.5

11.0

1.2

3.1

4.5

101.8

31.96
