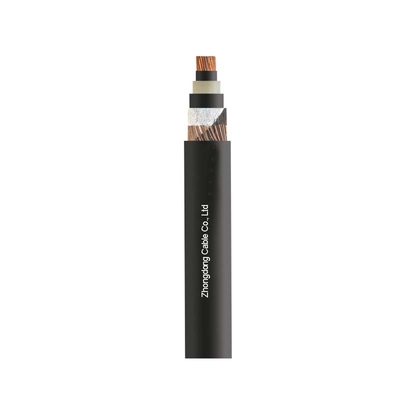

‌Termite-proof‌ High Voltage Cable Cable  110kV  2XS(FL)2Y, A2XS(FL)2Y

APPLICATION

• Urban Grids & Industrial Plants‌: Used for ‌power transmission and distribution‌ in cities, factories, and ports due to their ‌high reliability and durability‌
• ‌Outdoor Installations‌: Suitable for ‌direct burial or aerial mounting‌ with ‌UV-resistant PVC jackets‌ and ‌anti-termite additives‌ (FL) ‌
• ‌Underground Networks‌: Ideal for ‌tunnel or duct systems‌ with ‌longitudinal water-blocking‌ to prevent moisture ingress ‌
• ‌High-Humidity/Termite-Prone Areas‌: Deployed in ‌tropical regions‌ (e.g., Southeast Asia) where environmental resistance is critical ‌

CONSTRUCTION

• Conductor: Stranded circular or segmental (Milliken) compacted copper conductor
• Conductor shield:Semi-conductive shield
• Insulation: Cross-Linked Polyethylene(XLPE)
• Insulation shield: Semi-conductive shield
• Metal shielding layer:Corrugated Aluminum Sheath or Lead Sheath or Aluminum Laminated Tape
• Binder tape:Non-woven fabrics
• Metal Laminate Foil: Aluminum laminated tape
• Outer sheath: PE

STANDARD

IEC 60840 IEC 62067

CHARACTERISTIC

• Voltage Rating Uo/U: 64/110kV(123kV)
• ‌Continuous Operation: ‌+90°C‌ Conductor Temp
• ‌Emergency Overload‌:‌+105°C‌ Conductor Temp (≤100 hrs/year, ≤500 hrs/lifetime)
• Short Circuit:‌‌+250°C‌ Conductor Temp (for calculated duration, typically 1-5s)
• ‌Installation‌ ‌≥ 0°C‌
• ‌Ambient Operation ‌≥ -40°C

PARAMETERS

OUR FACTORY

PROJECT

APPLICATION

FAQ

‌Q.What does "FL" signify in the cable model?‌

A."FL" indicates ‌longitudinal water-blocking (F)‌ and ‌termite-proof (L)‌ features, suitable for humid or pest-prone environments

Q‌.What materials are used for conductor and insulation?‌

A‌.2XS(FL)2Y‌: Copper conductor (Cu) with ‌XLPE insulation‌.

   A2XS(FL)2Y‌: Aluminum conductor (Al) with XLPE insulation.

Q.What is the shielding structure of these cables?‌

A‌. Copper wire screen (S)‌ and ‌longitudinal water-blocking tape‌ for EMI protection and moisture resistance

Q‌.Where are these cables typically installed?‌

A.Used in ‌urban grids, industrial plants, and underground networks‌ due to their ‌durable armor (e.g., PVC sheath)‌

Q‌. What temperature range can these cables withstand?‌

A. Operating temperature: ‌-20°C to +90°C‌ (XLPE insulation ensures thermal stability)

Q‌.Are these cables flame-retardant?‌

A. Yes, variants with ‌LSZH (low-smoke zero-halogen)‌ sheaths are available for fire safety

Q.How to distinguish between 2XS(FL)2Y and A2XS(FL)2Y?‌

A."A" prefix‌ denotes aluminum conductor, while the copper variant omits it

Q.What is the lifespan of these cables?‌

A. Designed for ‌30+ years‌ with proper installation, supported by ‌10-year quality guarantees‌ from manufacturer
