Product Details:
|
Insulation: | XLPE HPDE | Voltage: | 8.7/15kV |
---|---|---|---|
Length: | Customized | Conductor Material: | Copper |
Packing: | Neutral Carton Packing Or Customized | Application: | Overhead |

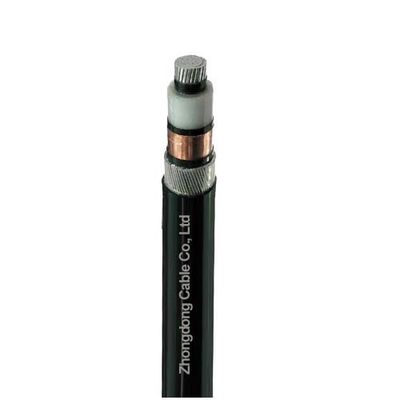

AAC Aluminium Conductor Cable XLPE/PVC/STA Medium Voltage Power Cable 8.7 15kV
Suitable for urban underground power grids, power station outgoing lines, internal power supply lines of industrial and mining enterprises, etc.
Conductor: Round compacted conductors
Conductor Shield:
Semi conductive shielding material (below 500mm)
Semi conductive tape+semi conductive shielding material (500mm and above)
Insulation: Polyvinyl chloride (PVC)
Insulation Shield: Peelable semiconducting shielding material
Metal Shield Layer: Copper Tape Copper Wire(35kV 500mm bove)
Filler: Polypropylene(PP) mesh filling rope
Binder Tape: Non hygroscopic straps
Armouring: Steel Tape(Single core)
Outer sheath: 90℃ Polyvinyl chloride (PVC)
GB/T31840.2-2015, GB/T 31840.3-2015
Specs |
Conductor diameter |
Outer thickness of insulation |
Approx outer diameter of cable |
Approx cable weight |
1×25 |
6.0±0.1 |
17.6 |
25.1 |
786 |
1×35 |
6.6±0.2 |
18.2 |
25.9 |
857 |
1×50 |
7.6±0.2 |
19.2 |
26.9 |
954 |
1×70 |
9.2±0.2 |
20.8 |
28.6 |
1085 |
1×95 |
10.9±0.2 |
22.5 |
30.3 |
1218 |
1×120 |
12.2±0.2 |
23.8 |
31.8 |
1356 |
1×150 |
13.6±0.2 |
25.2 |
332 |
1494 |
1×185 |
15.2±0.2 |
26.8 |
36.3 |
1679 |
1×240 |
17.4±0.2 |
29.0 |
38.6 |
2291 |
1×300 |
19.5±0.2 |
31.1 |
40.9 |
2581 |
1×400 |
22.0±0.2 |
33.6 |
43.8 |
3036 |
1×500 |
24.8±0.2 |
37.2 |
47.7 |
3558 |
1×630 |
28.2±0.2 |
40.6 |
51.3 |
4130 |
1×800 |
34.0±0.2 |
46.4 |
57.4 |
4968 |
