MV ABC Aerial bundle cable 6.35/11kV AL/XLPE/CWS/HDPE to AS/NZS 3599.1

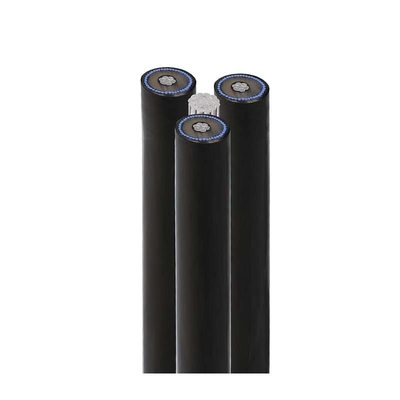

Large Image : MV ABC Aerial bundle cable 6.35/11kV AL/XLPE/CWS/HDPE to AS/NZS 3599.1

Product Details:

Place of Origin:	Heibei China
Brand Name:	Zhongdong
Certification:	CCC,ISO,TUV,CE
Model Number:	ABC cable

Payment & Shipping Terms:

Minimum Order Quantity:	flexible MOQ
Price:	Negotiable
Packaging Details:	Wooden Drum/ Steel Drum
Delivery Time:	7-30 days based on different qty
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	100KM/Week

Contact Now

MV ABC Aerial bundle cable 6.35/11kV AL/XLPE/CWS/HDPE to AS/NZS 3599.1

Description

Number Of Cores:	3+1	Installation Method:	Overhead
Phase Conductor:	AL/ALOY	Rated Voltage:	6.35/11kV
Sheath:	HPDE	Screen:	Copper Wire

MV ABC Aerial bundle cable 6.35/11kV AL/XLPE/CWS/HDPE to AS/NZS 3599.1

APPLICATION

It is primarily used for overhead distribution lines with voltage levels of 6.35/11kV and 12.7/22kV, and is particularly suitable for densely populated areas or forest zones. Its compact design reduces the need for tree trimming and enhances power supply reliability

CONSTRUCTION

Conductor:Circular Compacted Stranded H68 Aluminium ( Class 2)

Conductor Screen:Extruded Semi-conductive Layer

Insulation:XLPE

Insulation Screen:Extruded Semi-conductive Layer

Metallic Screen:Copper wire screen or copper tape screen

Outer Sheath:HDPE

Support Conductor:Galvanized steel wires

MV ABC Aerial bundle cable 6.35/11kV AL/XLPE/CWS/HDPE to AS/NZS 3599.1 0

STANDARD

AS/NZS 3599.1

CHARACTERISTIC

l Voltage rating: 6.35/11kV

l Normal operation 90°C.

l Emergency over load conditions 130°C.

l Short circuit conditions 250°C.

Specification

No of Cores x Cross Section	Nominal Conductor Diameter	Nominal Insulation Thickness	Nominal Insulation Screen Thickness	Copper Wire Screen Stranding	Nominal Sheath Thickness	Galvanized Steel Wire Stranding	Nominal Overall Diameter	Weight	Continuous current rating, A
No of Cores x Cross Section	Nominal Conductor Diameter	Nominal Insulation Thickness	Nominal Insulation Screen Thickness	Copper Wire Screen Stranding	Nominal Sheath Thickness	Galvanized Steel Wire Stranding	Nominal Overall Diameter	Weight	Still air	1m/s wind	2m/s wind
mm^2	mm	mm	mm	No/mm	mm	No/mm	mm	kg/km	A	A	A
Light duty screen
3x35	6.9	3.4	0.8	25/0.85	1.8	7/2.00	54.1	1820	99	140	165
3x35	6.9	3.4	0.8	25/0.85	1.8	19/2.00	58.1	2130	100	145	165
3x50	8.1	3.4	0.8	25/0.85	1.8	19/2.00	60.4	2300	120	170	200
3x70	9.7	3.4	0.8	25/0.85	1.8	19/2.00	63.6	2570	150	215	250
3x95	11.4	3.4	0.8	25/0.85	1.8	19/2.00	67	2900	180	260	305
3x120	12.8	3.4	0.8	25/0.85	1.8	19/2.00	69.8	3190	205	300	355
3x150	14.2	3.4	0.8	25/0.85	1.9	19/2.00	73	3530	235	340	400
3x185	15.7	3.4	0.8	25/0.85	1.9	19/2.00	76	3890	265	390	460
Heavy duty screen
3x35	6.9	3.4	0.8	40/0.85	1.8	7/2.00	54.1	2050	99	140	165
3x35	6.9	3.4	0.8	40/0.85	1.8	19/2.00	58.1	2360	100	145	165
3x50	8.1	3.4	0.8	23/1.35	1.8	19/2.00	62.4	2820	120	175	200
3x70	9.7	3.4	0.8	32/1.35	1.8	19/2.00	65.6	3440	150	215	250
3x95	11.4	3.4	0.8	39/1.35	1.8	19/2.00	69	4030	180	260	305
3x120	12.8	3.4	0.8	39/1.35	1.8	19/2.00	71.8	4320	205	300	355
3x150	14.2	3.4	0.8	39/1.35	1.9	19/2.00	75	4670	230	340	400
3x185	15.7	3.4	0.8	39/1.35	1.9	19/2.00	78	5020	265	390	460
3x185	15.7	3.4	0.8	39/1.35	1.9	19/2.00	78	5020	265	390	460

ABOUT US

MV ABC Aerial bundle cable 6.35/11kV AL/XLPE/CWS/HDPE to AS/NZS 3599.1 2

PACKAGE AND SHIPPING

APPLICATION

MV ABC Aerial bundle cable 6.35/11kV AL/XLPE/CWS/HDPE to AS/NZS 3599.1 4

FAQ

Q1.Can you provide other standard ABC Cable?

A1: Yes, our cables comply all international standards.

Q2.Are you a factory or trading company?

A2: We are a manufacturer.

Q3:How to get a free sample?
A3.Ofcourse,we could provide free samples and you charge the shipping cost
Q4. How long delivery time?
A4.It usualy take 7-10days for sample order and 25-30days for big order.
Q5.What is your payment term?
A5.Ourpaymenterm is usualy T/T30% in advanced,the balance before picking up the goods
Q6.Do you accept OEM service?
A6.Yes,we wil customize the products according to your specific requirements
