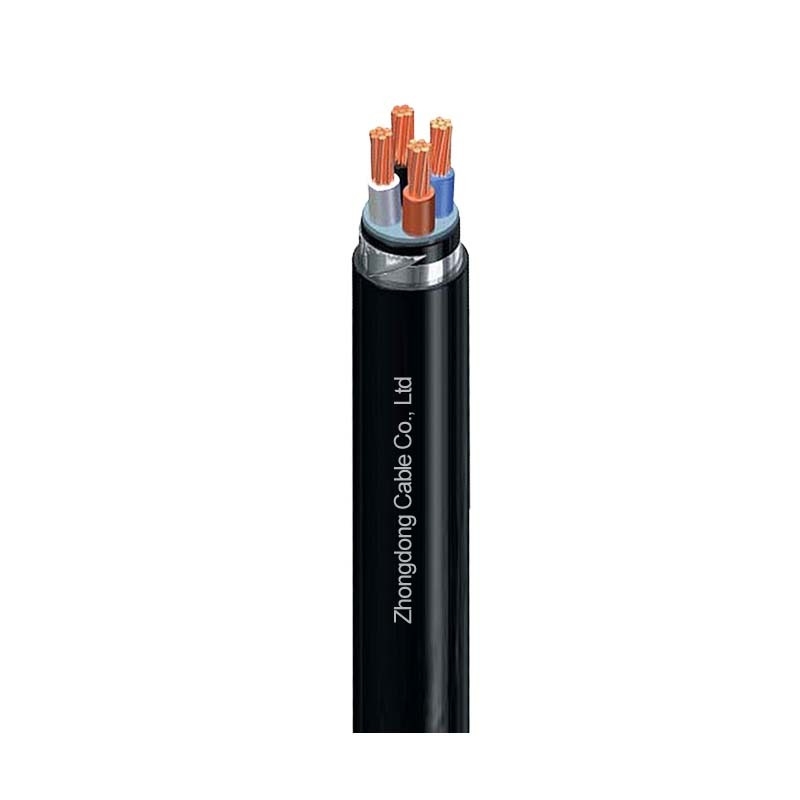

Armoured Control Electrical Cable N2XBY XLPE Insulated Control Cable CU/XLPE/STA/PVC
APPLICATION
This product is suitable for use in control, monitoring circuits, and protection circuits in circuits with a rated voltage of 450/750V and below
CONSTRUCTION
Conductor:Circular solid copper conductor(A) or circular stranded copper conductor(B)
Insulation: Polyvinyl chloride (PVC)
Filler:Polypropylene(PP) mesh filling rope
Armouring: Galvanized steel tape
Outer sheath: Polyvinyl chloride (PVC)
CHARACTERISTIC
Voltage Rating Uo/U: 450/750V
Temperature Rating
Maximum operating temperature of conductor:+70℃
Operating ambient temperature: -15℃~+45℃
Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
Minimum Bending Radius: 12D (D is the actual outer diameter of the cable)
Specification
No of core: 2-61 core
Nominal cross-section of conductor: 0.5-10mm2
TYPE
|
Specs
mm²
|
Conductor diameter
mm
|
Nominal thickness of insulation
mm
|
Nominal thickness of sheath
mm
|
Approximate outer diameter of cable
mm
|
Approximate cable weight
kg/km
|
|
8×0.5(B)
|
0.90
|
0.6
|
1.5
|
13.9
|
274.6
|
|
8×0.75
|
1.02
|
0.6
|
1.5
|
14.3
|
302.5
|
|
8×0.75(B)
|
1.10
|
0.6
|
1.5
|
14.5
|
311.4
|
|
8×1
|
1.16
|
0.6
|
1.5
|
14.8
|
333.5
|
|
8×1(B)
|
1.29
|
0.6
|
1.5
|
15.2
|
347.3
|
|
8×1.5
|
1.41
|
0.7
|
1.5
|
163
|
418.3
|
|
8×1.5(B)
|
1.56
|
0.7
|
1.5
|
16.9
|
435.3
|
|
8×2.5
|
1.76
|
0.8
|
1.5
|
18.4
|
557.6
|
|
8×2.5(B)
|
2.04
|
0.8
|
1.5
|
19.2
|
584.7
|
|
8×4
|
2.22
|
0.8
|
1.7
|
20.5
|
733.4
|
|
8×4(B)
|
2.55
|
0.8
|
1.7
|
21.4
|
766.4
|
|
8×6
|
2.74
|
0.8
|
1.7
|
22.2
|
931.7
|
|
8×6(B)
|
3.10
|
0.8
|
1.7
|
233
|
971.1
|
|
8×10
|
4.00
|
1.0
|
1.7
|
28.3
|
1454.2
|
|
10×0.5
|
0.85
|
0.6
|
1.5
|
14.8
|
310.5
|
|
10×0.5(B)
|
0.90
|
0.6
|
1.5
|
15.0
|
317.8
|
|
10×0.75
|
1.02
|
0.6
|
1.5
|
15.5
|
351.9
|
|
10×0.75(B)
|
1.10
|
0.6
|
1.5
|
15.8
|
362.8
|
|
10×1
|
1.16
|
0.6
|
1.5
|
16.1
|
390.1
|
|
10×1(B)
|
1.29
|
0.6
|
1.5
|
16.6
|
406.8
|
|
10×1.5
|
1.41
|
0.7
|
1.5
|
17.9
|
494.1
|
|
10×1.5(B)
|
1.56
|
0.7
|
1.5
|
185
|
514.9
|
|
10×2.5
|
1.76
|
0.8
|
1.7
|
20.8
|
685.3
|
|
10×2.5(B)
|
2.04
|
0.8
|
1.7
|
21.7
|
719.4
|
|
10×4
|
2.22
|
0.8
|
1.7
|
22.7
|
881.5
|
|
10×4(B)
|
2.55
|
0.8
|
1.7
|
23.7
|
921.9
|
|
10×6
|
2.74
|
0.8
|
1.7
|
24.7
|
1127.4
|
|
10×6(B)
|
3.10
|
0.8
|
1.7
|
25.9
|
1175.7
|
|
10×10
|
4.00
|
1.0
|
2.0
|
32.3
|
1816.9
|
|
12×0.5
|
0.85
|
0.6
|
1.5
|
15.2
|
333.5
|
|
12×0.5(B)
|
0.90
|
0.6
|
1.5
|
15.4
|
341.6
|
|
2×0.75
|
1.02
|
0.6
|
1.5
|
15.9
|
380.6
|
|
12×0.75(B)
|
1.10
|
0.6
|
1.5
|
16.2
|
392.7
|
|
12×1
|
1.16
|
0.6
|
1.5
|
16.5
|
424.5
|
|
12×1(B)
|
1.29
|
0.6
|
1.5
|
17.0
|
442.7
|
|
12×1.5
|
1.41
|
0.7
|
1.5
|
18.4
|
542.5
|
|
12×1.5(B)
|
1.56
|
0.7
|
1.5
|
19.0
|
565.1
|
ABOUT US
PACKAGE
APPLICATION
FAQ
Q1. What is a control cable?
A1. Control cable is a multi-core cable designed to transmit signals and low-voltage control commands in automation systems, machinery, and industrial applications.
Q2. What are the common types of control cables?
A2.KVV: Basic PVC-insulated, unarmored.
KVV22: Steel tape armored for mechanical protection.
KVVP: Shielded (copper braid) for EMI resistance.
KYJV: Higher temperature resistance (XLPE insulation).
Q3. When should I use armored control cables?
A4.Choose KVV22 (steel tape armor) for underground or high-impact environments. Use KVV32 (steel wire armor) for vertical installations or tension-heavy scenarios.
