ACWU90 Aluminium Conductor Cable #8 AWG THRU 750 kcmil XLPE/aluminium Armoured /PVC Cable
APPLICATION
Suitable for urban underground power grids, power station outgoing lines, internal power supply lines of industrial and mining enterprises, etc.
CONSTRUCTION

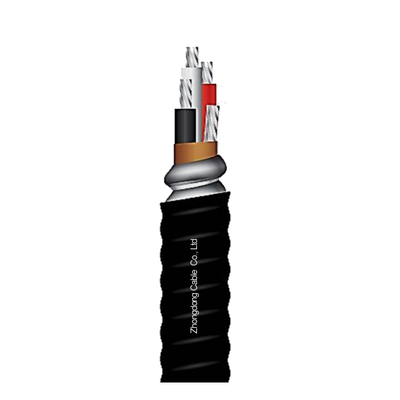

- Conductor: 8 AWG. thru 750 kcmil aluminum (8000 series aluminum) compact class “B” strand
- Insulation: Cross-linked Polyethylene (XLPE) Type RW90
- Bonding Conductor (Ground): One (1) bare stranded aluminum (ACM) conductor
- Armour:: Aluminum Interlocked Armour (AIA)
- Jacket: Low acid gas, flame-retardant, moisture and sunlight resistant Polyvinyl Chloride (PVC),
CHARACTERISTIC
- Operational in both wet and dry environments with a continuous temperature rating of 90°C
- Superior resistance to crushing, oils, and harsh chemicals (e.g., acids, solvents)
- Engineered for extended service life under demanding conditions, reducing replacement frequency
- Cost-effective alternative to installations in conduit
- Meets cold bend and impact tests at (-40°C)
SPECIFICATION
NO OF
COND. |
COND.
SIZE |
GROUND
WIRE SIZE |
MIN.AVG.
INSULATION |
NOMINAL DIAMETER(OVER) |
NET |
AMPACITY |
|
|
|
(AWG/
kcmil) |
(AWG
/kcmil) |
THICKNESS |
TWISTED CORE |
ARMOUR |
CABLE |
WEIGHT |
AT 90°C |
|
|
|
|
|
|
|
|
|
|
|
INCHES |
mm |
INCHES |
mm |
INCHES |
mm |
INCHES |
mm |
KG/KM |
|
| 3 |
8 |
8 |
0.045 |
1.14 |
0.533 |
13.5 |
0.783 |
19.89 |
0.870 |
22.10 |
422 |
45 |
| 3 |
6 |
8 |
0.045 |
1.14 |
0.565 |
14.4 |
0.845 |
21.46 |
0.932 |
23.67 |
498 |
55* |
| 3 |
4 |
6 |
0.045 |
1.14 |
0.675 |
17.1 |
0.925 |
23.50 |
1.012 |
25.70 |
619 |
75 |
| 3 |
3 |
6 |
0.045 |
1.14 |
0.744 |
18.9 |
0.994 |
25.25 |
1.081 |
27.46 |
690 |
85 |
| 3 |
2 |
6 |
0.045 |
1.14 |
0.785 |
19.9 |
1.070 |
27.18 |
1.157 |
29.39 |
794 |
100 |
| 3 |
1 |
4 |
0.055 |
1.40 |
0.902 |
22.9 |
1.152 |
29.26 |
1.239 |
31.47 |
951 |
115 |
| 3 |
1/00 |
4 |
0.055 |
1.40 |
1.107 |
28.1 |
1.357 |
34.47 |
1.314 |
33.38 |
1085 |
135 |
| 3 |
2/00 |
4 |
0.055 |
1.40 |
1.066 |
27.1 |
1.316 |
33.43 |
1.403 |
35.64 |
1246 |
150 |
| 3 |
3/00 |
4 |
0.055 |
1.40 |
1.170 |
29.7 |
1.420 |
36.07 |
1.507 |
38.28 |
1450 |
175 |
| 3 |
4/00 |
4 |
0.055 |
1.40 |
1.281 |
32.5 |
1.531 |
38.89 |
1.636 |
41.55 |
1697 |
205 |
| 3 |
250 |
2 |
0.065 |
1.65 |
1.391 |
35.3 |
1.641 |
41.68 |
1.771 |
44.98 |
2072 |
230 |
| 3 |
300 |
2 |
0.065 |
1.65 |
1.496 |
38.0 |
1.836 |
46.63 |
1.966 |
49.94 |
2378 |
260 |
| 3 |
350 |
2 |
0.065 |
1.65 |
1.593 |
40.5 |
1.903 |
48.34 |
2.000 |
50.80 |
2681 |
280 |
| 3 |
400 |
2 |
0.065 |
1.65 |
1.686 |
42.8 |
1.996 |
50.70 |
2.101 |
53.37 |
2946 |
305 |
| 3 |
500 |
1 |
0.065 |
1.65 |
1.852 |
47.0 |
2.152 |
54.66 |
2.280 |
57.91 |
3585 |
350 |
| 3 |
600 |
1 |
0.080 |
2.03 |
2.077 |
52.8 |
2.267 |
57.58 |
2.518 |
63.96 |
4286 |
385 |
| 3 |
750 |
1/00 |
0.080 |
2.03 |
2.329 |
59.2 |
2.639 |
67.03 |
2.770 |
70.36 |
5058 |
435 |
