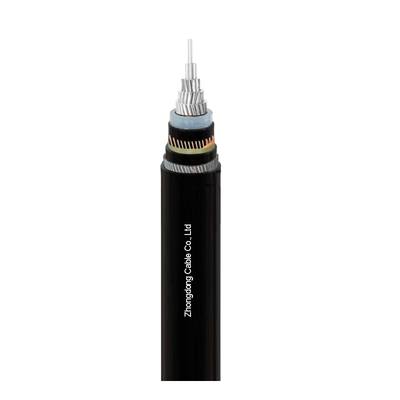

Single Core Aluminium Conductor Power cable Medium Voltage Underground Cable for Electrical Use

Single Core Aluminium Conductor Power cable Medium Voltage Underground Cable for Electrical Use
Single Core Aluminium Conductor Power cable Medium Voltage Underground Cable for Electrical Use

Large Image :  Single Core Aluminium Conductor Power cable Medium Voltage Underground Cable for Electrical Use

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: IEC,CE,ISO
Model Number: YJLHV62 YJLHV22
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden drums
Delivery Time: 10Days
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Contact Now

Single Core Aluminium Conductor Power cable Medium Voltage Underground Cable for Electrical Use

Description
Conductor: 8000 Aluminium Alloy Insulation: PVC
Voltage Rating: 3.6kV-35kV Outer Sheath Colour: Black
Temperature: Fixed -40°C To +80°C No Of Core: 1,3

Single Core Aluminium Conductor Power cable  Medium Voltage Underground Cable for Electrical Use


APPLICATION

Single-core aluminium conductor power cables with medium voltage ratings (typically 6kV–36kV) are widely used in the following scenarios‌

  • ‌Power Distribution Networks‌
  • ‌Industrial Facilities‌
  • ‌Infrastructure Projects‌
  • ‌Renewable Energy‌


CONSTRUCTION

  • Conductor:Round compacted conductors
  • Conductor Shield:Semi conductive shielding material (below 500mm2) Semi conductive tape+semi conductive shielding material (500mm2 and above)
  • Insulation:Polyvinyl chloride (PVC)
  • Insulation Shield:Peelable semiconducting shielding material
  • Metal Shield Layer:Copper Tape Copper Wire(35kV 500mm2 above)
  • Filler: Polypropylene(PP) mesh filling rope
  • Binder Tape: Non hygroscopic straps
  • Armouring: Steel Tape(Single core)   Galvanized steel tape(3 core)
  • Outer sheath:  90℃ Polyvinyl chloride (PVC)


Single Core Aluminium Conductor Power cable Medium Voltage Underground Cable for Electrical Use 0Single Core Aluminium Conductor Power cable Medium Voltage Underground Cable for Electrical Use 1




CHARACTERISTIC

  • Voltage Rating Uo/U
  • 3.6/6(7.2)kV, 6/6(7.2)kV, 6/10(12)kV, 8.7/10(12kV), 8.7/15(17.5)kV, 12/20(24)kV,18/30(36)kV, 21/35(40.5)kV, 26/35(40.5)kV
  • Maximum operating temperature of conductor:+90℃
  • Operating ambient temperature: -15℃~+55℃
  • Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
  • Minimum Bending Radius:  Single Core 15D   Three Core 12D


SPECIFICATION

                                                                   3.6/6kV Cable Structure Parameters

Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approx outer diameter of cable
mm

Approx cable weight
kg/km

1×25

6.0±0.1

12.2

21.1

604

1×35

6.6±0.2

12.8

21.7

670

1×50

7.6±0.2

13.8

22.9

759

1×70

9.2±0.2

15.4

24.5

869

1×95

10.9±0.2

17.1

26.4

993

1×120

12.2±0.2

18.4

27.7

1110

1×150

13.6±0.2

19.8

29.2

1253

1×185

15.2±0.2

21.4

30.8

1412

1×240

17.4±0.2

23.8

33.4

1669

1×300

19.5±0.2

26.3

37.5

2306

1×400

22.0±0.2

29.2

40.6

2758

1×500

24.8±0.2

33.2

45.0

3296

1×630

28.2±0.2

366

48.7

3875

1×800

34.0±0.2

42.4

54.7

4663

                                                                        6/6kV(6/10kV) Cable Structure Parameters

Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approx outer diameter of cable
mm

Approx cable weight
kg/km

1×25

6.0±0.1

15.6

23.1

687

1×35

6.6±0.2

16.2

23.7

756

1×50

7.6±0.2

17.2

24.9

849

1×70

9.2±0.2

18.8

26.5

963

1×95

10.9±0.2

20.5

28.3

1103

1×120

122±0.2

21.8

29.6

1224

1×150

13.6±0.2

23.2

31.2

1371

1×185

152±0.2

24.8

328

1536

1×240

17.4±0.2

27.0

36.5

1788

1×300

19.5±0.2

29.1

38.7

2401

1×400

22.0±0.2

31.6

41.6

2845

1×500

24.8±0.2

35.2

45.4

3332

1×630

282±0.2

38.6

49.1

3913

1×800

34.0±0.2

44.4

55.1

4704

                                                                        8.7/10kV(8.7/15kV) Cable Structure Parameters

Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approx outer diameter of cable
mm

Approx cable weight
kg/km

1×25

6.0±0.1

17.6

25.1

786

1×35

6.6±0.2

18.2

25.9

857

1×50

7.6±0.2

19.2

26.9

954

1×70

9.2±0.2

20.8

28.6

1085

1×95

10.9±0.2

22.5

30.3

1218

1×120

12.2±0.2

23.8

31.8

1356

1×150

13.6±0.2

25.2

332

1494

1×185

15.2±0.2

26.8

36.3

1679

1×240

17.4±0.2

29.0

38.6

2291

1×300

19.5±0.2

31.1

40.9

2581

1×400

22.0±0.2

33.6

43.8

3036

1×500

24.8±0.2

37.2

47.7

3558

1×630

28.2±0.2

40.6

51.3

4130

1×800

34.0±0.2

46.4

57.4

4968

Contact us for  12/20kV 18/30kV 21/ 35kV and 26/35kV


OUR PLANTS

Single Core Aluminium Conductor Power cable Medium Voltage Underground Cable for Electrical Use 2


APPLICATION


Single Core Aluminium Conductor Power cable Medium Voltage Underground Cable for Electrical Use 3



PROJECT


Single Core Aluminium Conductor Power cable Medium Voltage Underground Cable for Electrical Use 4


PACKAGE


Single Core Aluminium Conductor Power cable Medium Voltage Underground Cable for Electrical Use 5


PARTNER


Single Core Aluminium Conductor Power cable Medium Voltage Underground Cable for Electrical Use 6Single Core Aluminium Conductor Power cable Medium Voltage Underground Cable for Electrical Use 7


FAQ

Q‌: What is the voltage rating of single-core aluminum alloy medium voltage cables?‌
A : Typically rated for ‌6kV–36kV‌, suitable for industrial and urban power distribution networks

Q:Why choose aluminum alloy conductors over pure aluminum?‌
A: Aluminum alloys (e.g., AAAC) offer ‌higher tensile strength‌ and ‌better corrosion resistance‌, reducing sagging in overhead line

Q‌. Can single-core cables be installed underground?‌
A. Yes, but require ‌steel tape armor (STA)‌ or ‌swa (steel wire armor)‌ for mechanical protection

Q. How to mitigate induced currents in single-core MV cables?‌
A. Use ‌cross-bonding‌ or ‌non-magnetic piping‌ to prevent eddy current losses

Q‌. Are these cables suitable for renewable energy projects?‌
A. Yes, widely used in ‌wind/solar farms‌ for connecting generators to substations

Q‌. How to specify conductor size (e.g., 120mm²)?‌
A. Based on ‌load current‌ and ‌voltage drop‌ calculations; 120mm² is common for industrial loads
