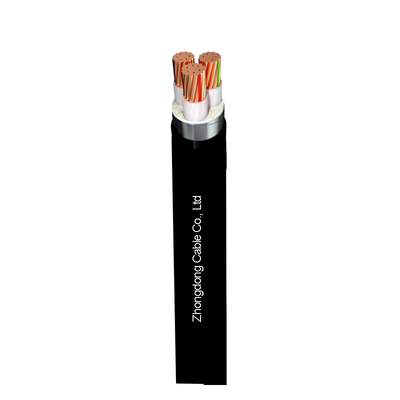

Armored STA 3 Core Electrical Cable Wire Flame Retardant IEC60502-1 IEC60332 Standard Cable

APPLICATION

The ‌Armored STA 3 Core Electrical Cable Wire (Flame Retardant, IEC60502-1 Standard)‌ is designed for fixed installations in demanding environments, featuring the following key applications and technical specifications:‌

• ‌Industrial Installations‌: Suitable for power distribution networks, machinery, and HVAC systems in manufacturing plants‌
• Utility & Infrastructure‌: Used in substations, power plants, and underground cabling due to its armored protection against mechanical stress‌
• ‌Public Spaces‌: Deployed in tunnels, cable ducts, and fire-prone areas where flame retardancy is critical‌

CONSTRUCTION

• Conductor: Class 1 or class 2 stranded Copper conductor
• Insulation: Cross-Linked Polyethylene(XLPE)
• Inner sheath: Polyvinyl chloride (PVC)
• Armour:  Single core: Steel Tape    Multi core: Galvanized Steel Tape
• Outer sheath: Polyvinyl chloride (PVC)

CHARACTERISTIC

• Voltage Rating Uo/U: 0.6/1kV
• Maximum system voltage: 12kV
• Maximum operating temperature of conductor:+90℃
• Operating ambient temperature: -20℃~+45℃
• Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
•  Minimum Bending Radius: Single core:15D   Multicire: 12D

Specification

ABOUT US

PACKAGE

PROJECT

WHY US

FAQ

‌Q: Is the conductor material copper or aluminum?‌
A: It typically features ‌copper conductors‌ (Class 1 or 2) for high conductivity, but aluminum variants are also available upon request

Q: What insulation material is used?‌
A: ‌XLPE (cross-linked polyethylene)‌ insulation is standard, offering superior thermal resistance compared to PVC

Q: What does "STA" stand for in the cable designation?‌
A: STA indicates ‌Steel Tape Armor‌, providing mechanical protection against crushing and rodent damage

Q: Does the cable meet flame retardant standards?‌
A: Yes, it complies with ‌IEC 60332-1‌ for low flame propagation and is rated for flame-retardant applications

‌Q: Where is this cable commonly used?‌
A: Ideal for ‌industrial plants, underground installations, and substations‌ due to its armored and flame-resistant properties

‌Q: Is it suitable for direct burial?‌
A: Yes, the steel armor and moisture-resistant sheath make it suitable for ‌underground and cable duct installations‌

‌Q: Can it be used in hazardous environments?‌
A: While flame-retardant, specific hazardous area approvals (e.g., ATEX) may require additional testing. Consult the manufacturer for tailored solutions
